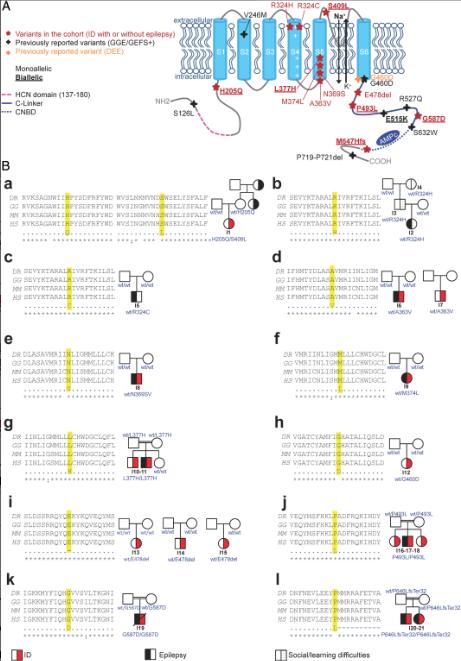

Figure 1, Pedigrees and HCN2 pathogenic variants. (A) HCN2 channel and pathogenic variants. Stars indicate HCN2 variants identified in this work, and crosses indicate those previously reported. Biallelic variants are underlined whereas monoallelic variants are not. (B) Pedigrees of individuals I1 to 21 and multi-species sequence alignment of the mutated HCN2 channels (ai). Sequence alignment was performed using Clustal Omega (Uniprot entries: A0A8N7T6V3 [Danio rerio], A0A8V1AGR5 [Gallus gallus], O88703 [Mus musculus], Q9UL51 [Homo sapiens]). Below the sequence alignment, a key denotes: conserved amino acid (*), conservative replacement (:), and non-conservative replacement (). When not mentioned, the individual's genotype is unknown.
[Color figure can be viewed at www.annalsofneurology.org] |
|

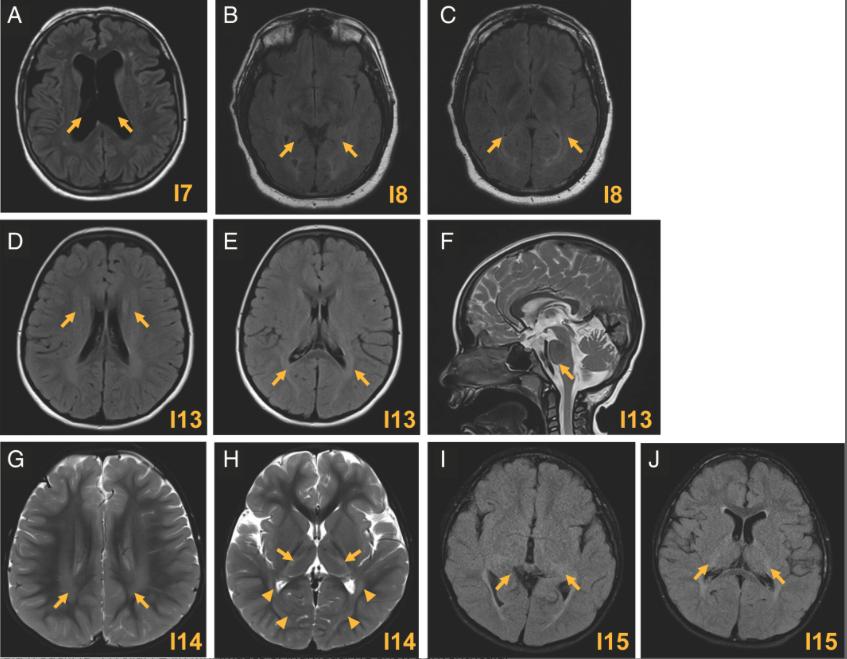

Figure 2. Cerebral MRI from individuals carrying the p.(Ala363Val), the p.(Asn369Ser), and the p.(Glu478del) variants. (A) Axial FLAIR MRI image from individual I7 show atrophy and an increase of ventricular spaces (arrows). Individual I7 carries the p.(Ala363Val) variant. (B, C) Axial brain MRI images show mild T2 signal changes in the periventricular white matter posteriorly in individual I8, carrying the p.(Asn369Ser) variant. (DH) Axial MRI scans of individuals carrying the p.(Glu478del). (DF) Axial FLAIR MRI images of individual I13 show periventricular white matter abnormalities. (F) Sagittal T2-weighted image shows superior vermis atrophy (arrow C). (G, H) Axial T2-weighted image through the centrum semiovale of individual I14 demonstrates a hyperintense signal involving the periventricular white matter with posterior predominance (arrows D). T2-weighted signal hyperintensity is also present in the ventrolateral thalami (E arrows), as well as the optic radiations and subcortical occipital white matter (E arrow heads). (J, K) Axial T2-weight images demonstrate posterior mild diffuse periventricular hyperintensity signal abnormality that extended into the posterior capsule into the thalami bilaterally in individual I15. FLAIR=fluid-attenuated inversion recovery; MRI=magnetic resonance imaging.
[Color figure can be viewed at www.annalsofneurology.org] |
|
FIGURE 3

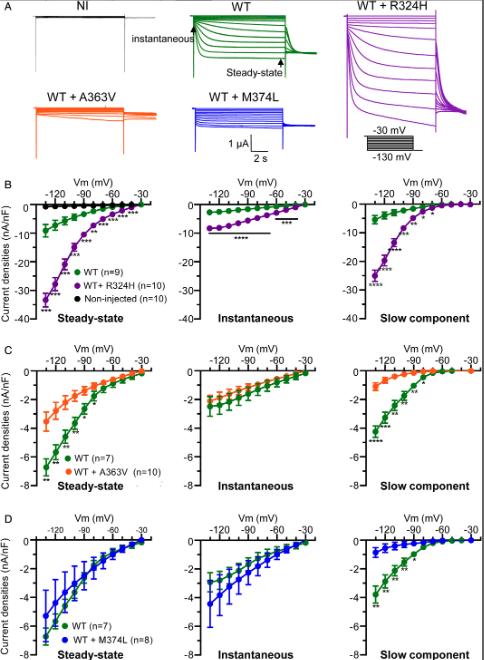

Electrophysiological characterization of the monoallelic variants, p.(Arg324His), p.(Ala363Val), and p.(Met374Leu). (A) Examples of superimposed current traces, developed in response to hyperpolarized stimulations. From left to right, are examples of currents elicited by uninjected oocytes (NI), wt-HCN2 channel (WT), wt/p.(Arg324His) (WT + R324H), wt/p.(Ala363Val) (WT + A363V), and wt/p.(Met374Leu) (WT + M374L) channels, respectively. (B–D) From left to right, the I/V curves were generated using current densities measured at the steady-state and instantaneous components. Current densities for the slow component were then calculated. For each variant, significance of difference with wt-HCN2 was analyzed with a 2-way ANOVA test (corrected with Geisser–Greenhouse method), followed by a comparison test (2-stage step-up method of Benjamini, Kriger, and Yekutieli). Data are shown as mean ± SEM. For clarity, no information indicates no significance. *, p < 0.05; **, p < 0.01; ***, p < 0,001; ****, p < 0.0001. ANOVA = analysis of variance; WT = wild type. [Color figure can be viewed at www.annalsofneurology.org] |
|

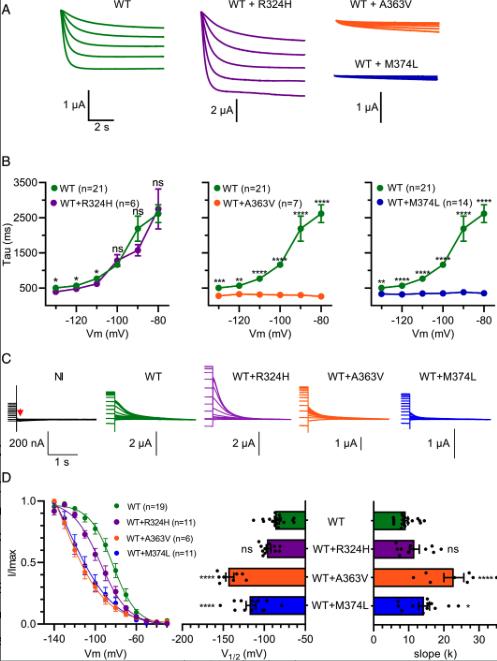

Figure 4. Activation kinetics and tail current analysis for the monoallelic variants, p.(Arg324His), p.(Ala363Val), and p.(Met374Leu). (A) Examples of traces showing the slow component of currents elicited by wt-HCN2 channel (WT), wt/p.(Arg324His) (WT + R324H), wt/p.(Ala363Val) (WT + A363V), and wt/p.(Met374Leu) (WT + M374L) channels, respectively. (B) Activating current kinetics analysis. Current traces were well-fitted with a single exponential equation. Tau (ms) was plotted versus Vm (mV). For each variant, significance of difference with wt-HCN2 was analyzed with a 2-way ANOVA test (corrected with Geisser–Greenhouse method), followed by a comparison test (2-stage step-up method of Benjamini, Kriger, and Yekutieli). (C) Representative tail current traces for wt-HCN2 channel (WT), wt/p.(Arg324His) (WT + R324H), wt/p.(Ala363Val) (WT + A363V), and wt/p.(Met374Leu) (WT + M374L) channels, respectively. (D) The left panel shows the normalized current amplitudes (I/Imax) versus Vm were fitted with the Boltzmann equation (see Supporting Information), allowing the determination of the half-activation potentials (V1/2) and the slope factor k. The right panel shows the scatter plots of the comparison of the V1/2 (left) and slope factor (right) of the wt-HCN2, wt/p.(Ala363Val), wt/p.(Met374Leu), and wt/p.(Arg324His) mutant channels. A 1-way ANOVA test (F = 53,15, p < 0.0001), followed by a Dunnett test, was performed and showed a significant difference between mutants and wt-HCN2, except between the p.(Arg324His) and wt- HCN2 (p = 0.48). Data are shown as mean ± SEM. ns, not significant; *, p < 0.05; **, p < 0.01; ***, p < 0,001; ****, p < 0.0001. ANOVA = analysis of variance; WT = wild type. [Color figure can be viewed at www.annalsofneurology.org] |
|

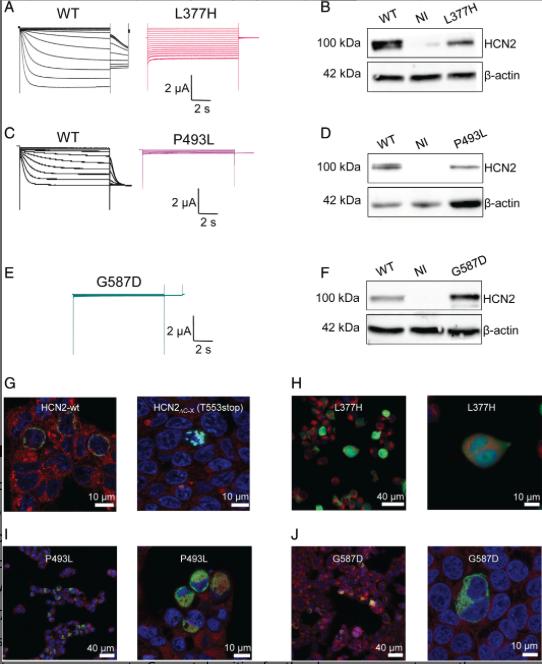

Figure 5. Characterization of the p.(Leu377His), the p.(Pro493Leu), and the p.(Gly587Asp) HCN2 variants. (A, C, and E) Representative TEVC recordings from oocytes expressing HCN2 wild-type and 2 homozygous variants of HCN2, p.(Leu377His), p.(Pro493Leu), and p.(Gly587Asp). The data show current traces for voltage steps from −130 to −30 mV from a holding potential of −30 mV for 10 seconds. (B, D, and F) Western blot of Xenopus laevis oocyte proteins. The panels show immunostaining with anti-HCN2 and anti-β-Actin antibodies. WT: Oocytes injected with wt-HCN2 mRNA, NI: Non-injected oocytes; L377H, P493L and G587D: Oocytes injected with the p.(Leu377His), the p.(Pro493Leu), and the p.(Gly587Asp) variants mRNAs, respectively. (G, H, J) Study of membrane trafficking of the p.(Leu377His), the p.(Pro493Leu), and the p.(Gly587Asp) variants in HEK293 cells. The expression of EGFP-tagged the p.(Leu377His) or the p.(Pro493Leu) or the p.(Gly587Asp) HCN2 variants was evaluated by confocal microscopy. The cells were stained with the CellMask orange membrane stain and DAPi nuclear stain. EGFP-tagged wt-HCN2 (G, left panel) shows a strong EGFP signal at the plasma membrane, while the trafficking-defected HCN2ΔC-X (Thr553Ter) shows cytosolic staining (G, right panel), as seen for the p.(Leu377His), the p.(Pro493Leu), and the p.(Gly587Asp) variants (H, I, J). Examples of images obtained from magnification of 63× are shown (G and H–J, left panels). Examples of overview with magnification from 20× are also shown (H–J, left panels). TEVC = 2-electrode voltage-clamp method; WT = wild type. [Color figure can be viewed at www.annalsofneurology.org] |
|
Figure 6. Structural analysis of the monoallelic pathogenic HCN2 variants, p.(Arg324His), p.(Ala363Val), and p.(M374Leu). (A) Mutation mapping onto 3D homology model of HCN2. Profile view of HCN2 3D structure in depolarized state, showing R324, A363, and M374 positions. For clarity, the chains A and C were hidden. The approximate position of HCN2 within the membrane is visualized with the gray rectangle. The regions delimitated by the dashed box were enlarged to illustrate the closest contacts of R324, A363, and M374 in chain B in the depolarized and hyperpolarized states (B, C, D). (B) Top views of R324 (in chocolate). The side chain of residue at 324 is toward the solvent in the depolarized state of HCN2, but, after opening, it remains trapped in a hydrophobic pocket formed by I233, K237, A320, R321, F328, L387, M390, and L391. The side chain of His fits well in this hydrophobic pocket. (C and D) Profile views of S5 to S6 interfaces showing the residues A363 and M374 and their hydrophobic interactions with their closest neighbor contacts. The hydrophobic interactions (in green dashed lines) are stronger in the p.(Ala363Val) and the p.(M374Leu) variants. In the p.(M374Leu) variant, a clash is observed between L374 and C454 (D). [Color figure can be viewed at www.annalsofneurology.org] |
|
