Vergani P, Nairn AC, Gadsby DC.

DK51767 NIDDK NIH HHS , R01 DK051767 NIDDK NIH HHS

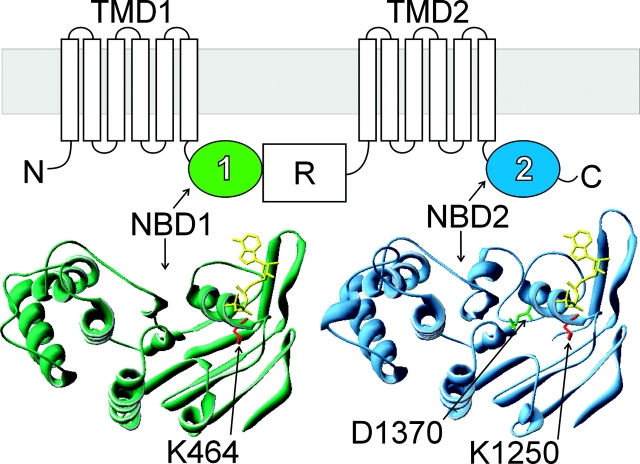

	Figure 1. . (Top) Cartoon of CFTR's domain topology, comprising two transmembrane domains (TMDs), a regulatory (R) domain, and NBD1 (green) and NBD2 (blue). (Below) Ribbon representations of homology models of NBD1 (green) and NBD2 (blue), based on the crystal structure of HisP-ATP (Hung et al., 1998), showing exposed positions of ATP molecules (yellow), Walker A lysines (red), and NBD2 Walker B aspartate (green). Homology models were built using the automated comparative modeling server “Swiss-model” (http://www.expasy.ch/swissmod/SWISS-MODEL.html; Guex and Peitsch, 1997) with alignments optimized on the basis of a ClustalW multiple sequence alignment of 20 bacterial and human NBDs.

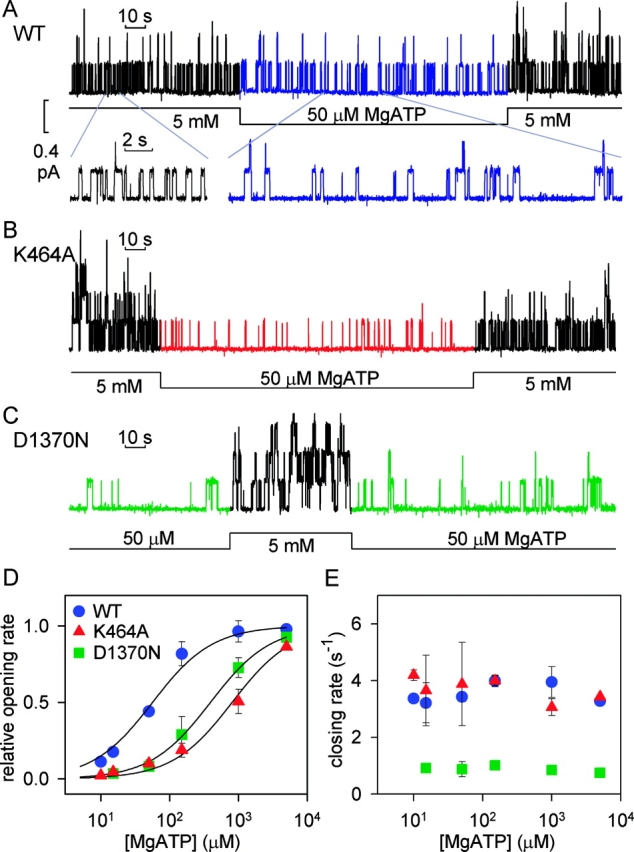

	Figure 2. . [MgATP] dependence of rates of opening to, and closing from, a burst of WT and mutant CFTR channels in inside-out patches. (A) WT channels, prephosphorylated by 300 nM PKA and 5 mM MgATP, shown during exposure to 5 mM, then 50 μM, and again 5 mM MgATP, as indicated; expanded segments at 5 mM and 50 μM MgATP are shown below. (B and C) Representative traces for prephosphorylated K464A and D1370N channels. Relative opening (D) and closing (E) rates (mean ± SEM, 2 ≤ n ≤ 7) from analysis of records as in A–C for WT (blue circles), K464A (red triangles), and D1370N (green squares) channels at 10 μM ≤ [MgATP] ≤ 5 mM, plotted on semilogarithmic axes. Opening rate and closing rate at each test [MgATP] were normalized to the mean values measured for bracketing segments at 5 mM MgATP (procedure (b), materials and methods). Curves in D show Michaelis-Menten fits, yielding K0.5 of 56 ± 5, 807 ± 185, 391 ± 118 μM, and rCOmax of 1.02, 1.16, and 1.08, for WT, K464A, and D1370N, respectively. For display, the data were further normalized to these rCOmax values. Mean absolute opening rates at 5 mM MgATP are given in Table I B. In E, the measured relative closing rates at each [MgATP] have been multiplied by the mean absolute closing rate for each construct in 5 mM MgATP (Table I B).

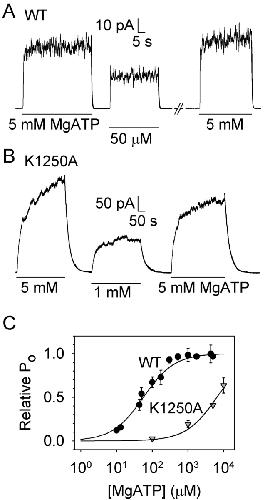

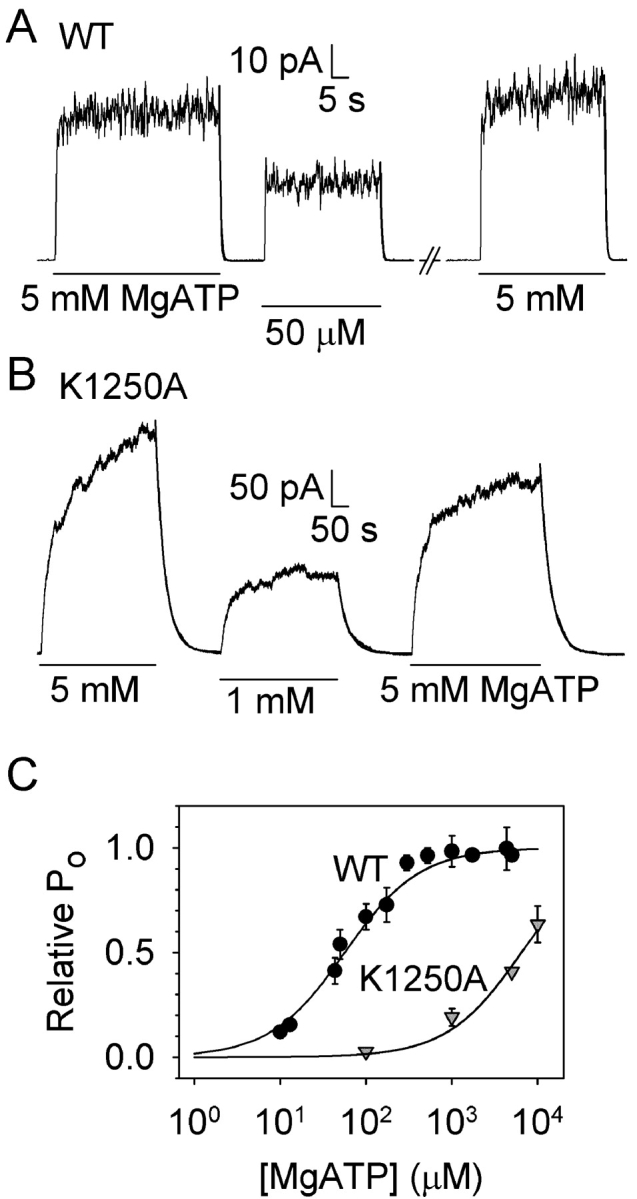

	Figure 3. . The K1250A mutation strongly shifts the [MgATP] dependence of Po to higher [MgATP]. (A) steady state level of macroscopic current of prephosphorylated WT CFTR channels was ∼2-fold lower at 50 μM MgATP than during bracketing exposures to 5 mM MgATP (as expected from Fig. 2); lines below traces mark MgATP applications. Rapid current decay on MgATP washout gave (exponential fit lines superimposed on traces) τ = 0.45 s, τ = 0.40 s, τ = 0.38 s, from left to right (mean τ = 0.54 ± 0.04 s, n = 21, pooled from all [MgATP]). (B) Macroscopic current of K1250A channels was reduced ≥2-fold on lowering [MgATP] from 5 to 1 mM. Superimposed exponential fit lines show slower current decay (note 10-fold contracted time scale relative to A) with, from left to right, τ = 28 s, τ = 30 s, τ = 32 s (mean τ = 39 ± 5, n = 9, from all [MgATP]). (C) Semilog plot of Po versus [MgATP]. Steady currents (averaged over final ≥20 s) at each [MgATP], normalized to the mean bracketing level at 5 mM MgATP, yielded least-squares. Michaelis fit parameters for WT: Po max = 1.04 ± 0.01, K0.5 = 57 ± 2 μM; for K1250A: Po max = 2.45 ± 0.88, K0.5 = 6.5 ± 4.8 mM; for display, WT (circles) and K1250A (inverted triangles) data (mean ± SD, 3 ≤ n ≤9) were renormalized to these Po max values. Because 10 mM, the highest [MgATP] used, was still far from saturating for K1250A channels, the fit for this mutant is less accurate, evident from large errors on fit parameters.

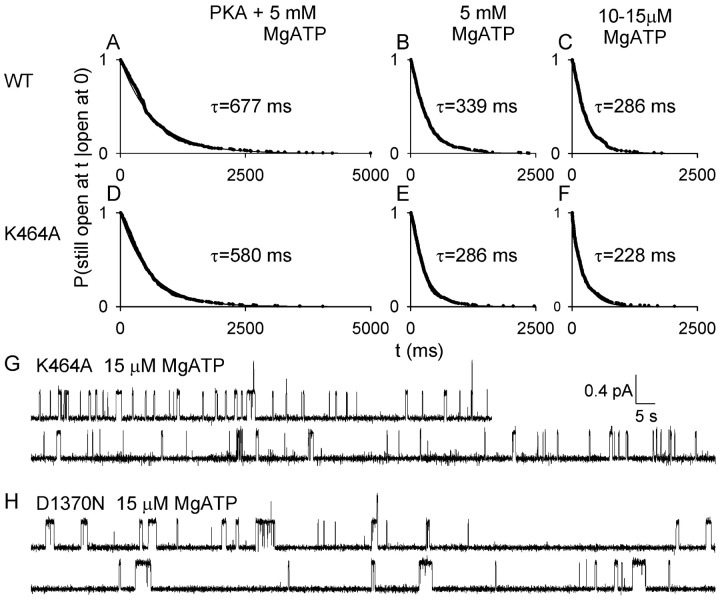

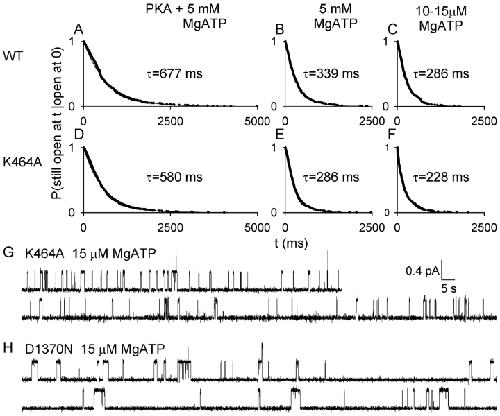

	Figure 4. . Burst duration distributions are similar for WT (A–C) and K464A (D–F) channels under comparable conditions, as indicated (PKA present for left column only). Fitted curves (through data points) show single exponentials from maximum-likelihood fits. Improvement of the fit by inclusion of a second exponential component was judged using the algorithm described in Csanády et al. (2000). Only for K464A at μM MgATP (F) could the likelihood be significantly increased by including a second component, though with a shorter (but not longer; Ikuma and Welsh, 2000) mean: τ1 = 30 ms, a1 = 0.17; τ2 = 263 ms, a2 = 0.83; increase in log likelihood, ΔLL = 8.3; number of bursts fitted, M = 263; giving (ΔLL − ln(2M) = 2.0). The small differences between means at mM and μM MgATP (B vs. C, E vs. F) may be only apparent, as the mean τb, estimated by multichannel kinetic fits, from these same stretches of record at μM MgATP is not significantly different from that during intervening stretches in 5 mM MgATP (for WT: τbμM/τb5mM = 1.03 ± 0.07, n = 9; for K464A: τbμM/τb5mM = 0.95 ± 0.13, n = 7). (G and H) Representative traces showing gating of K464A and D1370N channels at 15 μM MgATP (after PKA removal). Prolonged bursts of K464A channels (Ikuma and Welsh, 2000) are not evident. Though variability among the four patches containing sufficiently few D1370N channels precluded pooling the data for burst distribution analysis, in none of those patches (analyzed separately) did introduction of a second component significantly improve the maximum likelihood fit.

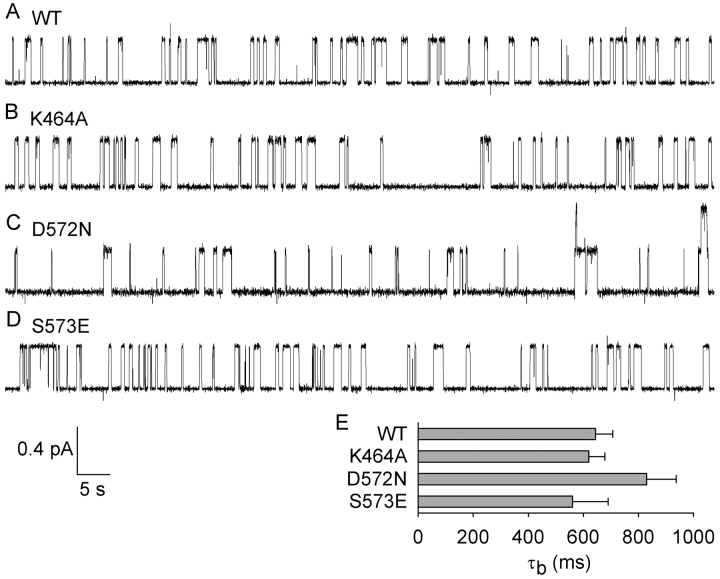

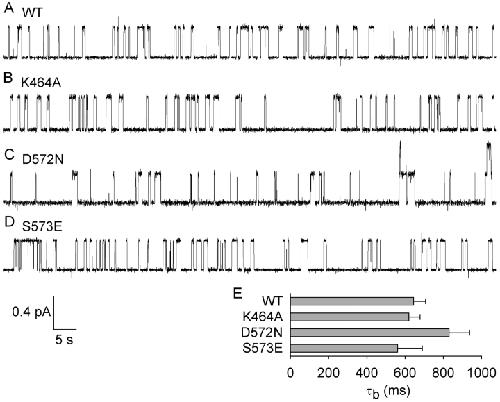

	Figure 5. . Mutations at the NBD1 catalytic site do not markedly alter open burst duration of channels exposed to 5 mM MgATP and 300 nM PKA. Patches contained one WT (A), K464A (B), or S573E (D) channel, or more than one D572N (C) channel. (E) Summary of mean (±SEM) τb values at 5 mM MgATP and 300 nM PKA (n = 30, 21, 9, and 7 for WT, K464A, D572N, and S573E, respectively).

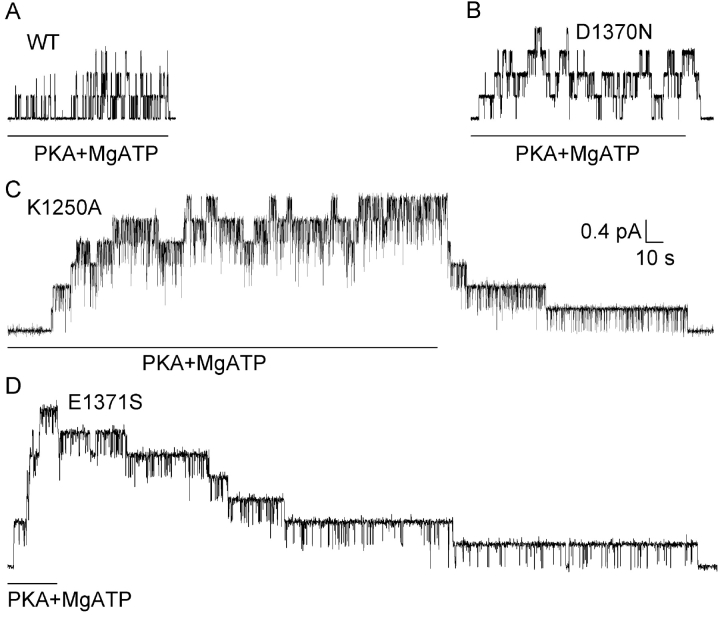

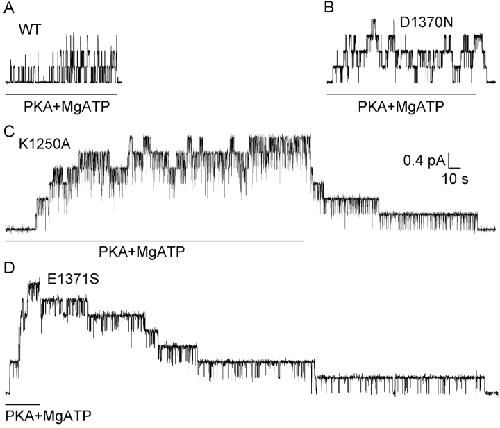

	Figure 6. . Mutations at the NBD2 catalytic site slow channel exit from open bursts. WT (A), D1370N (B), K1250A (C), and E1371S (D) CFTR channels were activated by 5 mM MgATP plus PKA as indicated: burst termination (∼0.4-pA downward steps) after nucleotide washout was slowed for NBD2 mutants, relative to WT. Note persistence of brief (intraburst) closures during K1250A and E1371S bursts, long after nucleotide withdrawal.

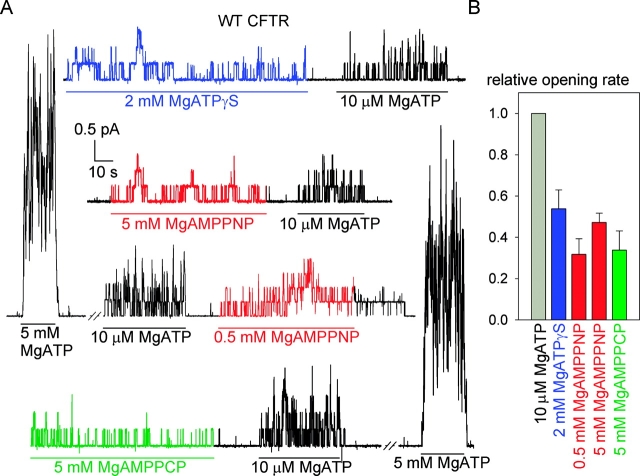

	Figure 7. . Opening of WT CFTR channels by poorly hydrolyzable ATP analogs. (A) Representative recordings from four patches containing many channels, previously phosphorylated by PKA; each patch was exposed to 10 μM MgATP, to (mM) analogue, and to 5 mM MgATP (shown for only two patches). Maximum likelihood fits using C-O-CF model gave, for MgATPγS τb = 2.0 ± 0.6 s (n = 5), for MgAMPPNP τb = 1.6 ± 0.2 s (n = 32), and for MgAMPPCP τb = 0.36 ± 0.05 (n = 11). (B) Summary of rCO values for nonhydrolyzable analogs normalized to rCO at 10 μM MgATP (which is ∼11% of maximum, Fig. 2 D) in the same patch.

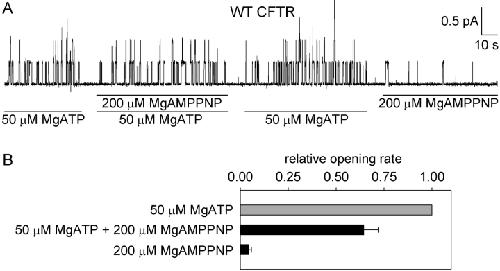

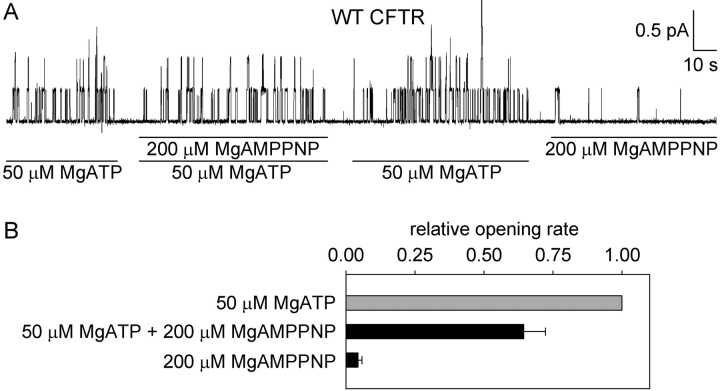

	Figure 8. . MgAMPPNP inhibits MgATP-induced opening of WT channels. (A) Representative record of prephosphorylated channels, exposed alternately to 50 μM MgATP or to 50 μM MgATP plus 200 μM MgAMPPNP, and then to 200 μM MgAMPPNP alone. (B) Summary of rCO values (mean ± SEM, n = 3) normalized to the average of that obtained from the stretches in 50 μM MgATP.

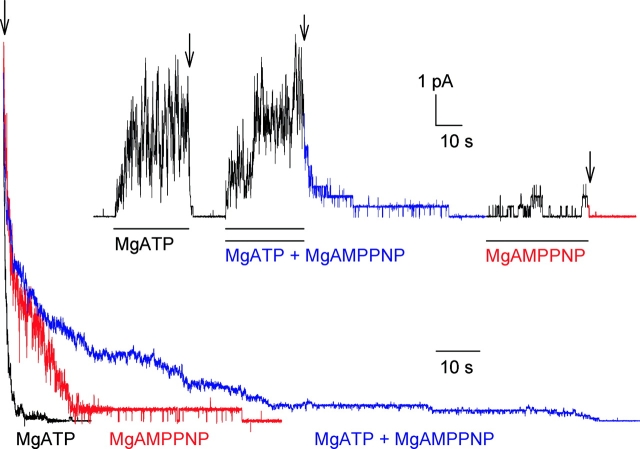

	Figure 9. . Exit from MgAMPPNP-locked burst states is slower when bursts are initiated in the presence of MgATP. Patches with hundreds of prephosphorylated WT CFTR channels were repeatedly subjected to ∼30-s long exposures to nucleotides (as in inset), in varied sequence. Each trace in the main figure is the sum of 21 recordings, synchronized upon nucleotide washout (arrow; also in inset), from 12 patches, each exposed to 0.5 mM MgATP, 5 mM MgAMPPNP, or 0.5 mM MgATP + 5 mM MgAMPPNP alternately, an equal number of times. Exponential decay fit parameters are: after MgATP, a = 33 pA, τ = 0.8 s; after AMPPNP, single a = 8 pA, τ = 6.8 s; double af = 6 pA, as = 6 pA, τf = 0.7s, τs = 8.8 s; after MgATP + MgAMPPNP, af = 20 pA, as = 18 pA τf = 2 s, τs = 36.6 s. As solution exchange time was 0.5–1s, fast components do not accurately reflect channel closing.

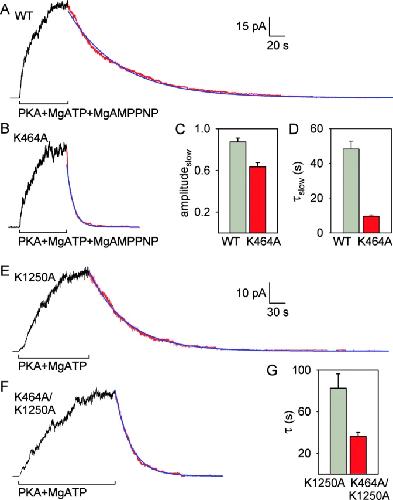

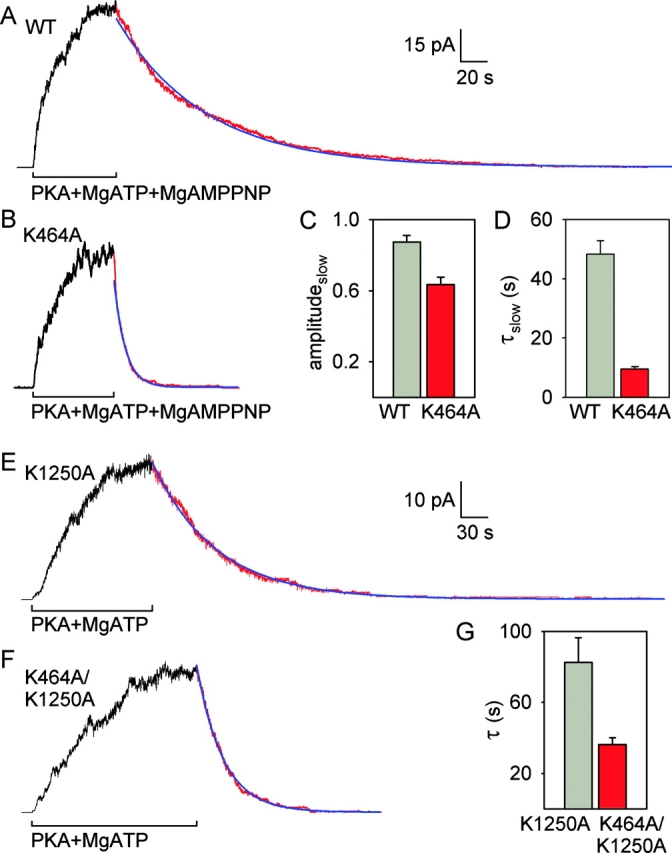

	Figure 10. . The K464A mutation speeds exit from locked open burst states. (A) Macroscopic WT channel current activated by a mixture of 0.5 mM MgATP and 5 mM MgAMPPNP (+PKA) decays slowly upon removal of nucleotides. (B) Current decay is much faster for the K464A mutant in the same conditions. Blue fit lines in A and B show only the slow components of double exponential fits, with τs = 67.8s, as = 0.92 for WT, and τs = 8.7s, as = 0.79 for K464A. (C and D) Summaries of fractional amplitude, as (C), and time constant, τs (D), of the slow component from 18 WT and 16 K464A experiments. In controls with no MgAMPPNP, closure after exposure to MgATP and PKA yielded τ = 1.9 ± 0.2 s (n = 35) for WT and τ = 1.0 ± 0.1 s (n = 34) for K464A, and both constructs sometimes showed a small amplitude slower component: for WT, τs = 7.6 ± 1.7 s, as = 0.1 ± 0.03 (in 13/35 patches); for K464A, τs = 5.9 ± 0.8 s, as = 0.24 ± 0.04 (20/24 patches). (E) Macroscopic K1250A currents, activated by 5 mM MgATP + PKA, decay slowly on nucleotide withdrawal. (F) The additional K464A mutation accelerates channel closure from bursts: for the traces shown, τ = 71.7s (K1250A) and τ = 29.7s (K464A/K1250A). (G) Mean time constants of all 9 K1250A and 9 K464A/K1250A relaxations, each well fit by a single exponential.

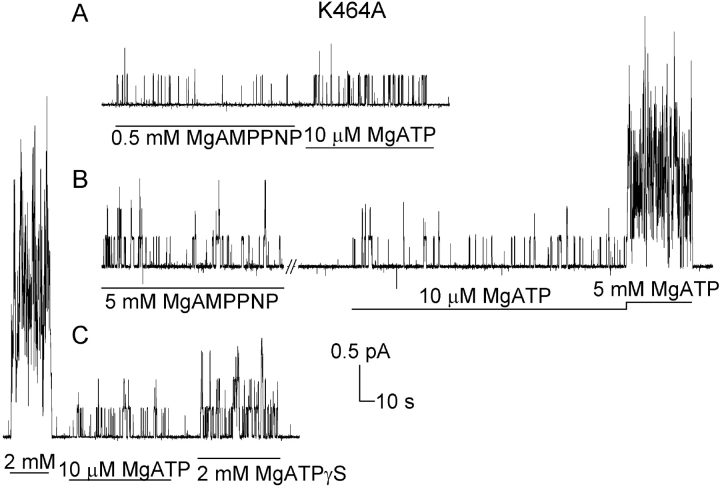

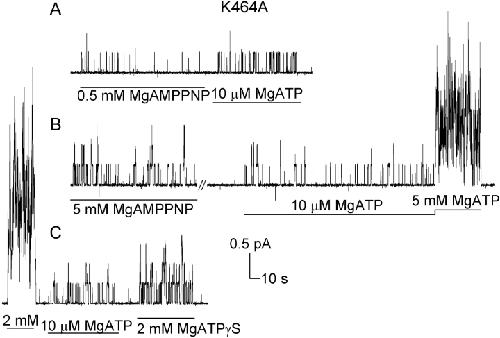

	Figure 11. . Gating of prephosphorylated K464A channels by poorly hydrolyzable ATP analogs, as indicated. Unlike WT (Fig. 7 A), K464A burst duration was not increased during exposure to MgAMPPNP (A and B, τb = 270 ± 50 ms, n = 8), and was only slightly increased during exposure to ATPγS (C, τb = 655 ± 170 ms, n = 8), compared with bursts in MgATP (τb = 276 ± 21 ms, n = 16) in the same patches. Note that, due to the lower apparent affinity of K464A for MgATP (Fig. 2), the relative opening rate of mutant channels at 10 μM MgATP averaged only 2.3 ± 0.8% (n = 3) of that in saturating MgATP (compared with ∼11% for WT), so the opening rate of K464A channels was similar in the presence of millimolar concentrations of the poorly hydrolyzable analogs or of 10 μM MgATP.

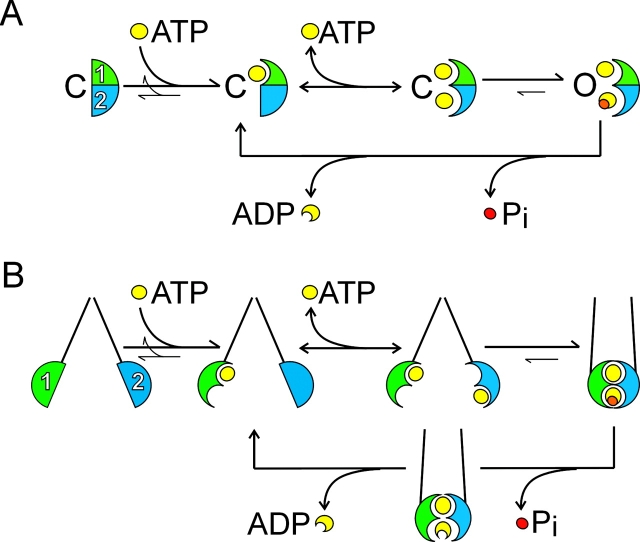

	Figure 12. . (A) Simplified scheme illustrating proposed linking of steps in WT CFTR channel gating, and nucleotide binding and hydrolytic cycles. Yellow ovals depict MgATP complexes, smaller red oval is inorganic phosphate, Pi (colored orange in prehydrolysis complex on open channel); the CFTR protein is represented as a green (NBD1) and blue (NBD2) semicircle, with shape altered (signifying induced-fit conformational changes in the NBDs; Karpowich et al., 2001) upon nucleotide binding. “C” represents closed interburst states of the channel and “O” symbolizes the collection of states during open bursts. Thickness and length of arrows indicate relative rates of individual steps. There is no evidence for strict sequential binding of the two MgATP complexes, but the alternative pathway to the doubly occupied closed state, in which nucleotide binds first at NBD2, probably occurs infrequently in WT CFTR (though not necessarily in mutants) and so was omitted for clarity. (B) Cartoon illustrating a possible physical interpretation of the scheme in A, in which NBD dimerization couples ATP binding and hydrolysis at the catalytic sites to opening and closing of the channel pore. Two semicircles represent NBD1 (green) and NBD2 (blue), and the transmembrane domains are represented by straight-line segments connected to the NBDs. Closed and Open channels are indicated by converging or near-parallel transmembrane domains, respectively. Catalytic sites and Cl− permeation pathway are structurally connected such that NBD dimer formation results in opening of the channel pore.

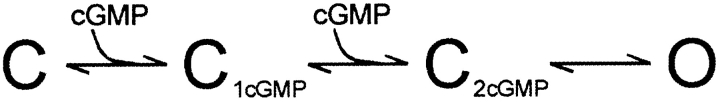

	Figure .

Aleksandrov, The First Nucleotide Binding Domain of Cystic Fibrosis Transmembrane Conductance Regulator Is a Site of Stable Nucleotide Interaction, whereas the Second Is a Site of Rapid Turnover. 2002, Pubmed

Aleksandrov, The First Nucleotide Binding Domain of Cystic Fibrosis Transmembrane Conductance Regulator Is a Site of Stable Nucleotide Interaction, whereas the Second Is a Site of Rapid Turnover. 2002, Pubmed
Aleksandrov, Regulation of CFTR ion channel gating by MgATP. 1998, Pubmed
Aleksandrov, Differential interactions of nucleotides at the two nucleotide binding domains of the cystic fibrosis transmembrane conductance regulator. 2001, Pubmed
Aleksandrov, The non-hydrolytic pathway of cystic fibrosis transmembrane conductance regulator ion channel gating. 2000, Pubmed
Anderson, Nucleoside triphosphates are required to open the CFTR chloride channel. 1991, Pubmed
Anderson, Regulation by ATP and ADP of CFTR chloride channels that contain mutant nucleotide-binding domains. 1992, Pubmed
Baukrowitz, Coupling of CFTR Cl- channel gating to an ATP hydrolysis cycle. 1994, Pubmed
Carson, 5'-Adenylylimidodiphosphate does not activate CFTR chloride channels in cell-free patches of membrane. 1993, Pubmed
Carson, The two nucleotide-binding domains of cystic fibrosis transmembrane conductance regulator (CFTR) have distinct functions in controlling channel activity. 1995, Pubmed
Carson, Structural and functional similarities between the nucleotide-binding domains of CFTR and GTP-binding proteins. 1995, Pubmed
Chan, Severed molecules functionally define the boundaries of the cystic fibrosis transmembrane conductance regulator's NH(2)-terminal nucleotide binding domain. 2000, Pubmed , Xenbase
Chang, Structure of MsbA from E. coli: a homolog of the multidrug resistance ATP binding cassette (ABC) transporters. 2001, Pubmed
Chen, Trapping the transition state of an ATP-binding cassette transporter: evidence for a concerted mechanism of maltose transport. 2001, Pubmed
Cheng, Phosphorylation of the R domain by cAMP-dependent protein kinase regulates the CFTR chloride channel. 1991, Pubmed
Cotten, Covalent modification of the nucleotide binding domains of cystic fibrosis transmembrane conductance regulator. 1998, Pubmed
Csanády, Rapid kinetic analysis of multichannel records by a simultaneous fit to all dwell-time histograms. 2000, Pubmed
Csanády, Severed channels probe regulation of gating of cystic fibrosis transmembrane conductance regulator by its cytoplasmic domains. 2000, Pubmed , Xenbase
DEL CASTILLO, Interaction at end-plate receptors between different choline derivatives. 1957, Pubmed
Diederichs, Crystal structure of MalK, the ATPase subunit of the trehalose/maltose ABC transporter of the archaeon Thermococcus litoralis. 2000, Pubmed
Dousmanis, Distinct Mg(2+)-dependent steps rate limit opening and closing of a single CFTR Cl(-) channel. 2002, Pubmed
Gadsby, Control of CFTR channel gating by phosphorylation and nucleotide hydrolysis. 1999, Pubmed
Gadsby, Regulation of CFTR channel gating. 1994, Pubmed
Gao, Comparison of the functional characteristics of the nucleotide binding domains of multidrug resistance protein 1. 2000, Pubmed
Gaudet, Structure of the ABC ATPase domain of human TAP1, the transporter associated with antigen processing. 2001, Pubmed
Guex, SWISS-MODEL and the Swiss-PdbViewer: an environment for comparative protein modeling. 1997, Pubmed
Gunderson, Conformational states of CFTR associated with channel gating: the role ATP binding and hydrolysis. 1995, Pubmed
Gunderson, Effects of pyrophosphate and nucleotide analogs suggest a role for ATP hydrolysis in cystic fibrosis transmembrane regulator channel gating. 1994, Pubmed
Hopfner, Structural biology of Rad50 ATPase: ATP-driven conformational control in DNA double-strand break repair and the ABC-ATPase superfamily. 2000, Pubmed
Hou, Allosteric interactions between the two non-equivalent nucleotide binding domains of multidrug resistance protein MRP1. 2000, Pubmed
Hou, ATP binding to the first nucleotide-binding domain of multidrug resistance protein MRP1 increases binding and hydrolysis of ATP and trapping of ADP at the second domain. 2002, Pubmed
Hrycyna, Both ATP sites of human P-glycoprotein are essential but not symmetric. 1999, Pubmed
Hung, Crystal structure of the ATP-binding subunit of an ABC transporter. 1998, Pubmed
Hunke, ATP modulates subunit-subunit interactions in an ATP-binding cassette transporter (MalFGK2) determined by site-directed chemical cross-linking. 2000, Pubmed
Hwang, Regulation of the gating of cystic fibrosis transmembrane conductance regulator C1 channels by phosphorylation and ATP hydrolysis. 1994, Pubmed
Ikuma, Regulation of CFTR Cl- channel gating by ATP binding and hydrolysis. 2000, Pubmed
Jackson, Successive openings of the same acetylcholine receptor channel are correlated in open time. 1983, Pubmed
Jones, Subunit interactions in ABC transporters: towards a functional architecture. 1999, Pubmed
Junop, Composite active site of an ABC ATPase: MutS uses ATP to verify mismatch recognition and authorize DNA repair. 2001, Pubmed
Kaczmarek, Microinjection of catalytic subunit of cyclic AMP-dependent protein kinase enhances calcium action potentials of bag cell neurons in cell culture. 1980, Pubmed
Karpowich, Crystal structures of the MJ1267 ATP binding cassette reveal an induced-fit effect at the ATPase active site of an ABC transporter. 2001, Pubmed
Koronakis, Protein exporter function and in vitro ATPase activity are correlated in ABC-domain mutants of HlyB. 1995, Pubmed
Li, ATPase activity of the cystic fibrosis transmembrane conductance regulator. 1996, Pubmed
Linsdell, Adenosine triphosphate-dependent asymmetry of anion permeation in the cystic fibrosis transmembrane conductance regulator chloride channel. 1998, Pubmed
Locher, The E. coli BtuCD structure: a framework for ABC transporter architecture and mechanism. 2002, Pubmed
Loo, Cross-linking of human multidrug resistance P-glycoprotein by the substrate, tris-(2-maleimidoethyl)amine, is altered by ATP hydrolysis. Evidence for rotation of a transmembrane helix. 2001, Pubmed
Manavalan, Sequence homologies between nucleotide binding regions of CFTR and G-proteins suggest structural and functional similarities. 1995, Pubmed
Mathews, The CFTR chloride channel: nucleotide interactions and temperature-dependent gating. 1998, Pubmed
Matsuo, Different binding properties and affinities for ATP and ADP among sulfonylurea receptor subtypes, SUR1, SUR2A, and SUR2B. 2000, Pubmed
Matsuo, ATP binding properties of the nucleotide-binding folds of SUR1. 1999, Pubmed
Moody, Cooperative, ATP-dependent association of the nucleotide binding cassettes during the catalytic cycle of ATP-binding cassette transporters. 2002, Pubmed
Picciotto, Phosphorylation of the cystic fibrosis transmembrane conductance regulator. 1992, Pubmed
Powe, Mutation of Walker-A lysine 464 in cystic fibrosis transmembrane conductance regulator reveals functional interaction between its nucleotide-binding domains. 2002, Pubmed
Qu, FRET analysis indicates that the two ATPase active sites of the P-glycoprotein multidrug transporter are closely associated. 2001, Pubmed
Quinton, Control of CFTR chloride conductance by ATP levels through non-hydrolytic binding. 1992, Pubmed
Ramjeesingh, Walker mutations reveal loose relationship between catalytic and channel-gating activities of purified CFTR (cystic fibrosis transmembrane conductance regulator). 1999, Pubmed
Riordan, Identification of the cystic fibrosis gene: cloning and characterization of complementary DNA. 1989, Pubmed
Schneider, ATP-binding-cassette (ABC) transport systems: functional and structural aspects of the ATP-hydrolyzing subunits/domains. 1998, Pubmed
Schultz, Regulation of CFTR Cl- channel gating by ADP and ATP analogues. 1995, Pubmed
Senior, P-glycoprotein shows strong catalytic cooperativity between the two nucleotide sites. 1998, Pubmed
Sheppard, Structure and function of the CFTR chloride channel. 1999, Pubmed
Szabó, Nucleotide occlusion in the human cystic fibrosis transmembrane conductance regulator. Different patterns in the two nucleotide binding domains. 1999, Pubmed
Tabcharani, Phosphorylation-regulated Cl- channel in CHO cells stably expressing the cystic fibrosis gene. 1991, Pubmed
Ueda, MgADP antagonism to Mg2+-independent ATP binding of the sulfonylurea receptor SUR1. 1997, Pubmed
Ueda, Cooperative binding of ATP and MgADP in the sulfonylurea receptor is modulated by glibenclamide. 1999, Pubmed
Urbatsch, P-glycoprotein is stably inhibited by vanadate-induced trapping of nucleotide at a single catalytic site. 1995, Pubmed
Urbatsch, Mutations in either nucleotide-binding site of P-glycoprotein (Mdr3) prevent vanadate trapping of nucleotide at both sites. 1998, Pubmed
Venglarik, ATP alters current fluctuations of cystic fibrosis transmembrane conductance regulator: evidence for a three-state activation mechanism. 1994, Pubmed
Walker, Distantly related sequences in the alpha- and beta-subunits of ATP synthase, myosin, kinases and other ATP-requiring enzymes and a common nucleotide binding fold. 1982, Pubmed
Weber, Mg2+ coordination in catalytic sites of F1-ATPase. 1998, Pubmed
Weinreich, Dual effects of ADP and adenylylimidodiphosphate on CFTR channel kinetics show binding to two different nucleotide binding sites. 1999, Pubmed , Xenbase
Winter, Effect of ATP concentration on CFTR Cl- channels: a kinetic analysis of channel regulation. 1994, Pubmed
Yount, Adenylyl imidodiphosphate, an adenosine triphosphate analog containing a P--N--P linkage. 1971, Pubmed
Yuan, The crystal structure of the MJ0796 ATP-binding cassette. Implications for the structural consequences of ATP hydrolysis in the active site of an ABC transporter. 2001, Pubmed
Zeltwanger, Gating of cystic fibrosis transmembrane conductance regulator chloride channels by adenosine triphosphate hydrolysis. Quantitative analysis of a cyclic gating scheme. 1999, Pubmed
