Silverå Ejneby M et al. (2018), Atom-by-atom tuning of the electrostatic potass...

XB-ART-56341

J Gen Physiol 2018 May 07;1505:731-750. doi: 10.1085/jgp.201711965.

Show Gene links Show Anatomy links

Atom-by-atom tuning of the electrostatic potassium-channel modulator dehydroabietic acid.

Silverå Ejneby M, Wu X, Ottosson NE, Münger EP, Lundström I, Konradsson P, Elinder F.

???displayArticle.abstract???
Dehydroabietic acid (DHAA) is a naturally occurring component of pine resin that was recently shown to open voltage-gated potassium (KV) channels. The hydrophobic part of DHAA anchors the compound near the channel's positively charged voltage sensor in a pocket between the channel and the lipid membrane. The negatively charged carboxyl group exerts an electrostatic effect on the channel's voltage sensor, leading to the channel opening. In this study, we show that the channel-opening effect increases as the length of the carboxyl-group stalk is extended until a critical length of three atoms is reached. Longer stalks render the compounds noneffective. This critical distance is consistent with a simple electrostatic model in which the charge location depends on the stalk length. By combining an effective anchor with the optimal stalk length, we create a compound that opens the human KV7.2/7.3 (M type) potassium channel at a concentration of 1 µM. These results suggest that a stalk between the anchor and the effector group is a powerful way of increasing the potency of a channel-opening drug.

???displayArticle.pubmedLink??? 29626041
???displayArticle.pmcLink??? PMC5940250
???displayArticle.link??? J Gen Physiol

Species referenced: Xenopus
GO keywords: voltage-gated potassium channel activity

???displayArticle.disOnts??? epilepsy
???displayArticle.omims??? VENTRICULAR ARRHYTHMIAS DUE TO CARDIAC RYANODINE RECEPTOR CALCIUM RELEASE DEFICIENCY SYNDROME; VACRDS

???attribute.lit??? ???displayArticles.show???

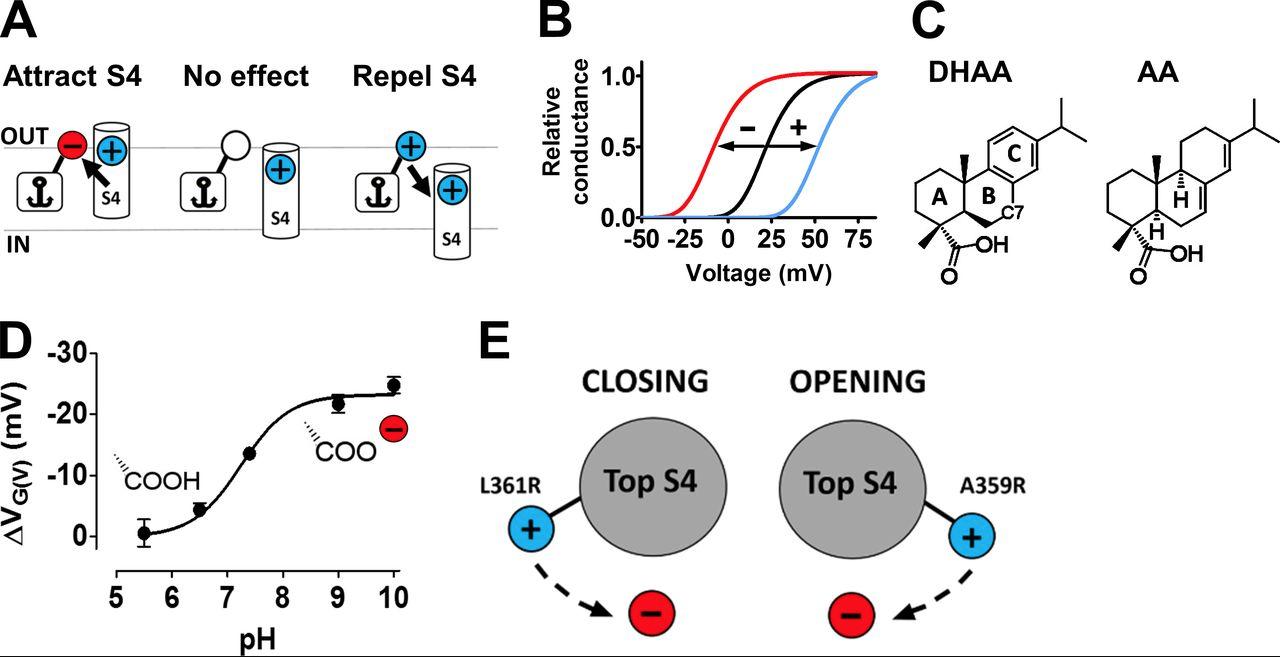

	Figure 1. The lipoelectric mechanism. (A) A compound binds with its hydrophobic anchor in the lipid membrane. The charged effector, attached to the anchor, electrostatically affects the positively charged voltage sensor (S4). (B) Compounds in A affect the voltage dependence of the channel opening. The direction of the shift depends on the valence of the charge. (C) Structures of DHAA and AA. The nomenclature of the ring structure and location of carbon 7 (C7) is shown in DHAA. (D) pH dependence for the effect of 100 µM DHAA on the 3R Shaker KV channel (updated from Ottosson et al., 2015). The carboxyl group is shown in either its protonated or deprotonated form. Error bars represent mean ± SEM (n = 4–8). (E) A negatively charged compound, located close to the voltage sensor S4, either facilitates or hinders channel opening by affecting the rotation of the voltage sensor S4. The direction depends on which side of S4 an arginine (R) is located.

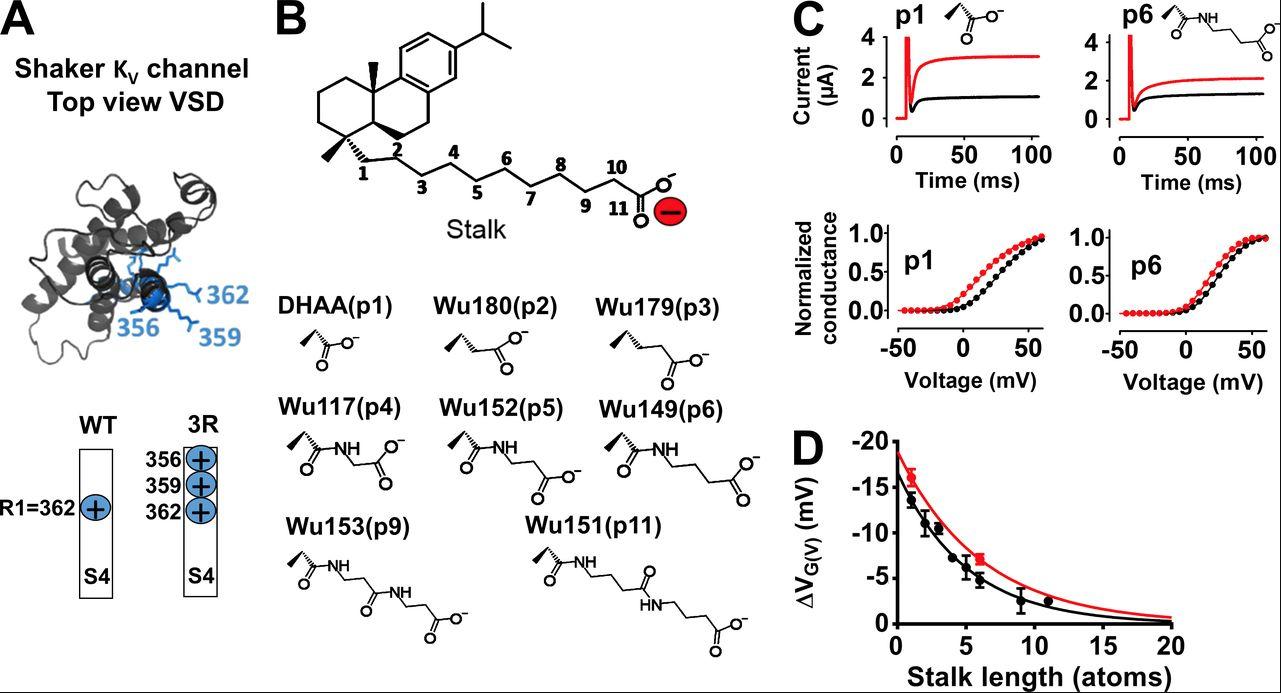

	Figure 2. Effect of DHAA derivatives with different stalk lengths on the 3R Shaker KV channel. (A) Top view of the Shaker KV channel VSD. Gating charges (arginines) in blue: the WT Shaker KV channel has R362 as top charge (=R1); the 3R Shaker KV channel has two additional charges (M356R and A359R). (B) Nomenclature for the position of the charged group (p1–11; top) and the specific carboxyl-acid stalks used (bottom). (C) K currents at 10 mV (top) and normalized G(V) curves (bottom), before (black) and after (red) application of 100 µM DHAA(p1) (G(V) shift = ‒13.0 mV) and Wu149(p6) (G(V) shift = ‒5.3 mV). pH = 7.4. (D) G(V)-shifting effects of DHAA (black) and AA (red) derivatives with different stalk lengths (100 µM, pH = 7.4). Mean ± SEM (n = 3–11). Data fitted with Eq. 4. Length constant λ = 5.1 ± 0.5 atoms (DHAA anchor) and λ = 6.1 ± 0.7 atoms (AA anchor), respectively.

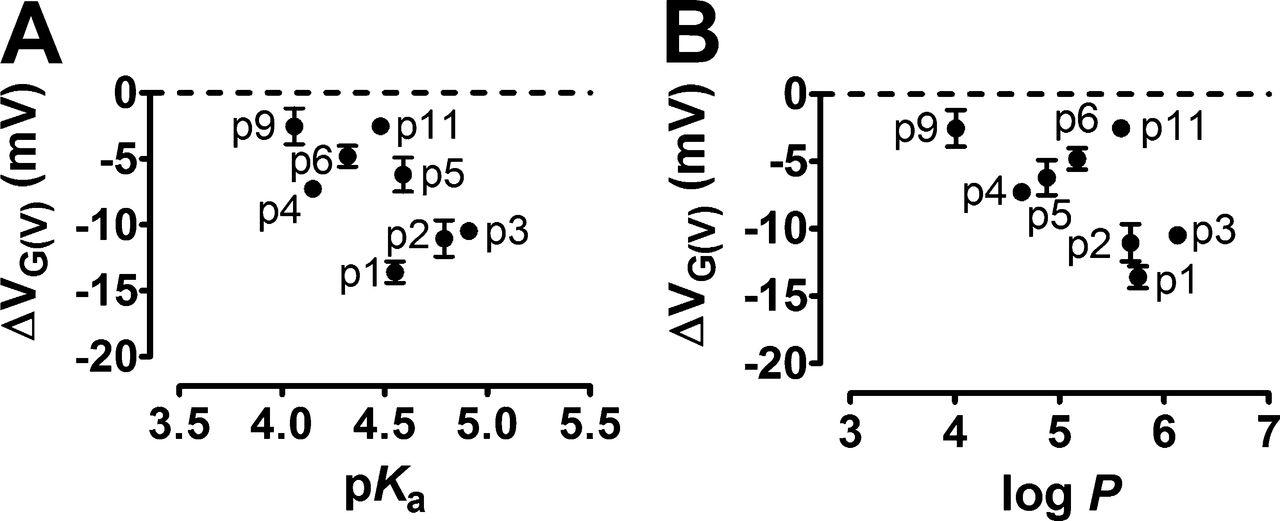

	Figure 3. No correlations between G(V) shifts, pKa, and log p-values for DHAA derivatives. (A) Correlation between the G(V) shift of the 3R Shaker KV channel induced by the DHAA derivatives (100 µM, pH = 7.4) from Fig. 2 D and their calculated pKa values. Error bars represent mean ± SEM (n, see Table 1). (B) Correlation between the G(V) shift of the 3R Shaker KV channel induced by the DHAA derivatives (100 µM, pH = 7.4) from Fig. 2 D and their calculated solubility (log P) for the uncharged molecule. Error bars represent mean ± SEM (n, see Table 1). Correlation analyses with Pearson’s correlation test and linear regressions were not significant. P < 0.05 considered significant.

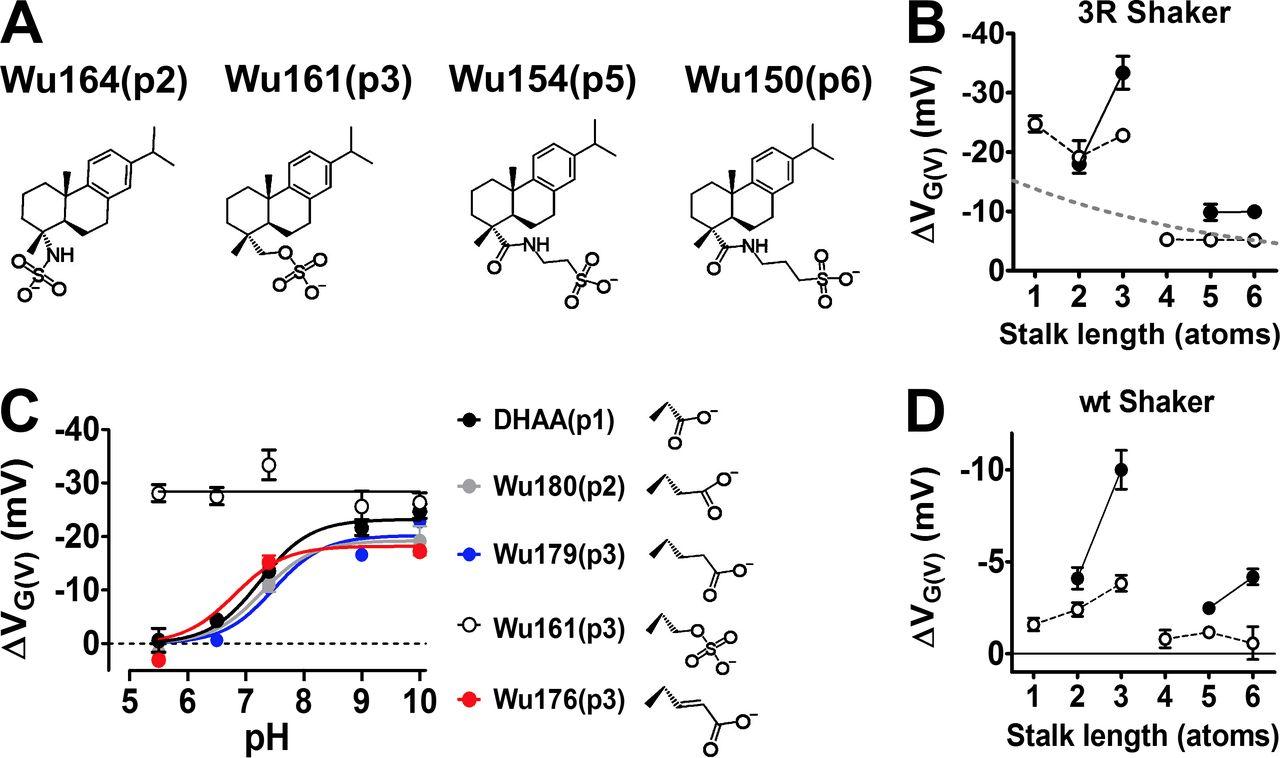

	Figure 4. Role of the stalk length with a fully charged effector. (A) Structures of permanently charged DHAA derivatives with a sulfonic acid group. (B) G(V)-shifting effects of DHAA derivatives (100 µM) on the 3R Shaker KV channel. White circles denote carboxyl groups (structures in Fig. 2 B) at pH 10.0. Black circles denote permanently charged groups (structures in A) at pH 7.4. Mean ± SEM (n = 3–7). Gray dashed line is for DHAA derivatives with carboxyl groups at pH 7.4 (Fig. 2 D). (C) pH dependence for G(V) shifts of indicated compounds (100 µM) on the 3R Shaker KV channel. Mean ± SEM (n = 3–11). Data fitted to Eq. 3. DHAA: pKa = 7.2, ΔVMax = −23.4 mV. Wu180: pKa = 7.3, ΔVMax = −19.3 mV. Wu179: pKa = 7.5, ΔVMax = −20.2. Wu176: pKa = 6.8, ΔVMax = −18.2 mV. (D) G(V)-shifting effects of DHAA derivatives (100 µM) on the WT Shaker KV channel. Symbols as in B. Mean ± SEM (n = 3–7).

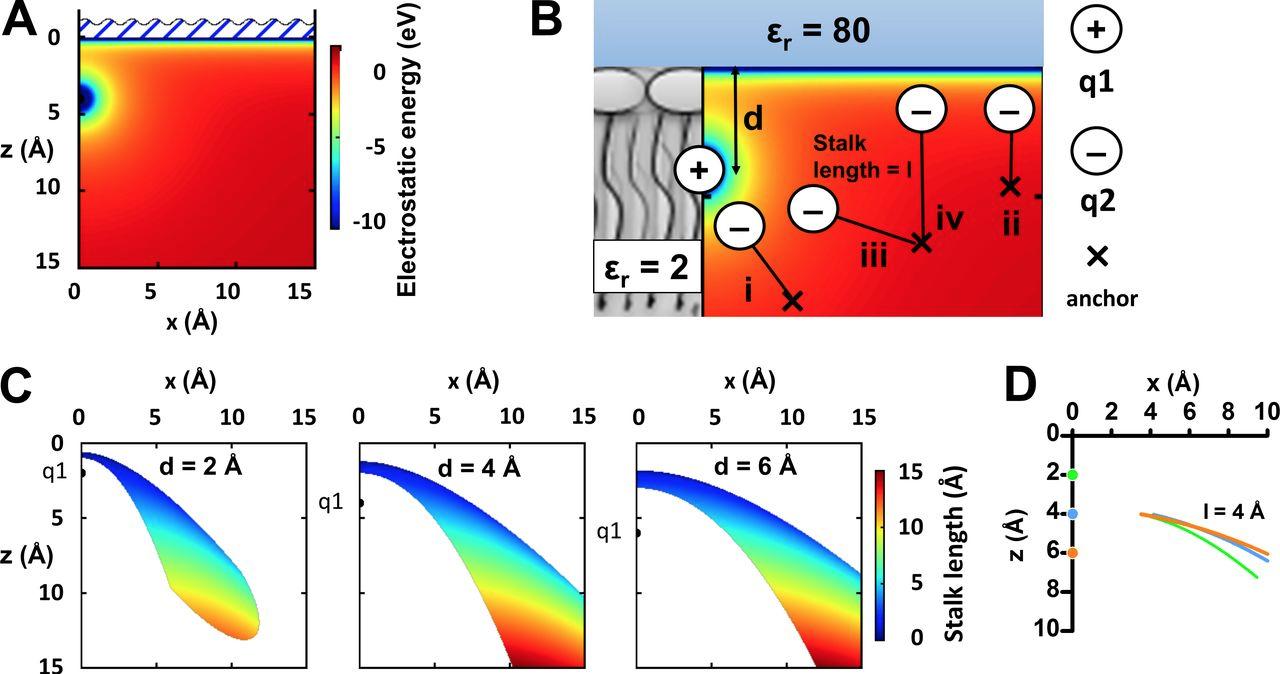

	Figure 5. The cutoff model. (A) Electrostatic energy for a charge q1 = 1 e at (0,4) Å and q2 = ‒1 e at (x,z) Å. (B) Schematic illustration of the cutoff model. At one anchor position, the charge q2 is attracted to q1, independent of the stalk length l (i). At another anchor position, the charge q2 is attracted to the extracellular solution, independent of the stalk length (ii). At certain anchor positions, the charge q2 is attracted either to q1 for shorter stalk lengths (iii) or to the extracellular solution for longer stalk lengths (iv). (C) Critical stalk lengths (i.e., the length at which the charge q2 is attracted equally well to the charge q1 or to the extracellular solution) for a stalk fixed at (x,z) Å. Charge q1 = 1 e at d = (0,2), (0,4), (0,6) Å and q2 = ‒1 e at the end of the stalk with different lengths (according to the color coding). (D) Positions for the cutoff anchor point when the stalk length is 4 Å (l = 4 Å). Charge q1 = 1 e at d = (0,2), (0,4), (0,6) Å and q2 = ‒1 e at the end of the stalk.
	Figure 6. The valence of the charge is critical for the effect. (A) G(V) shifts for DHAA derivatives on the 3R Shaker KV channel (100 µM, pH = 7.4). Mean ± SEM (n = 3–4 for Wu110 and Wu111, n = 5–6 for Wu161 and Wu109). (B) Effect of the uncharged Wu110 on the normalized G(V) curve of the 3R Shaker KV channel. G(V) shift = 0.0 mV. (C) Effect of the permanently charged Wu161 on the normalized G(V) curve of the 3R Shaker KV channel. G(V) shift = ‒34.6 mV.

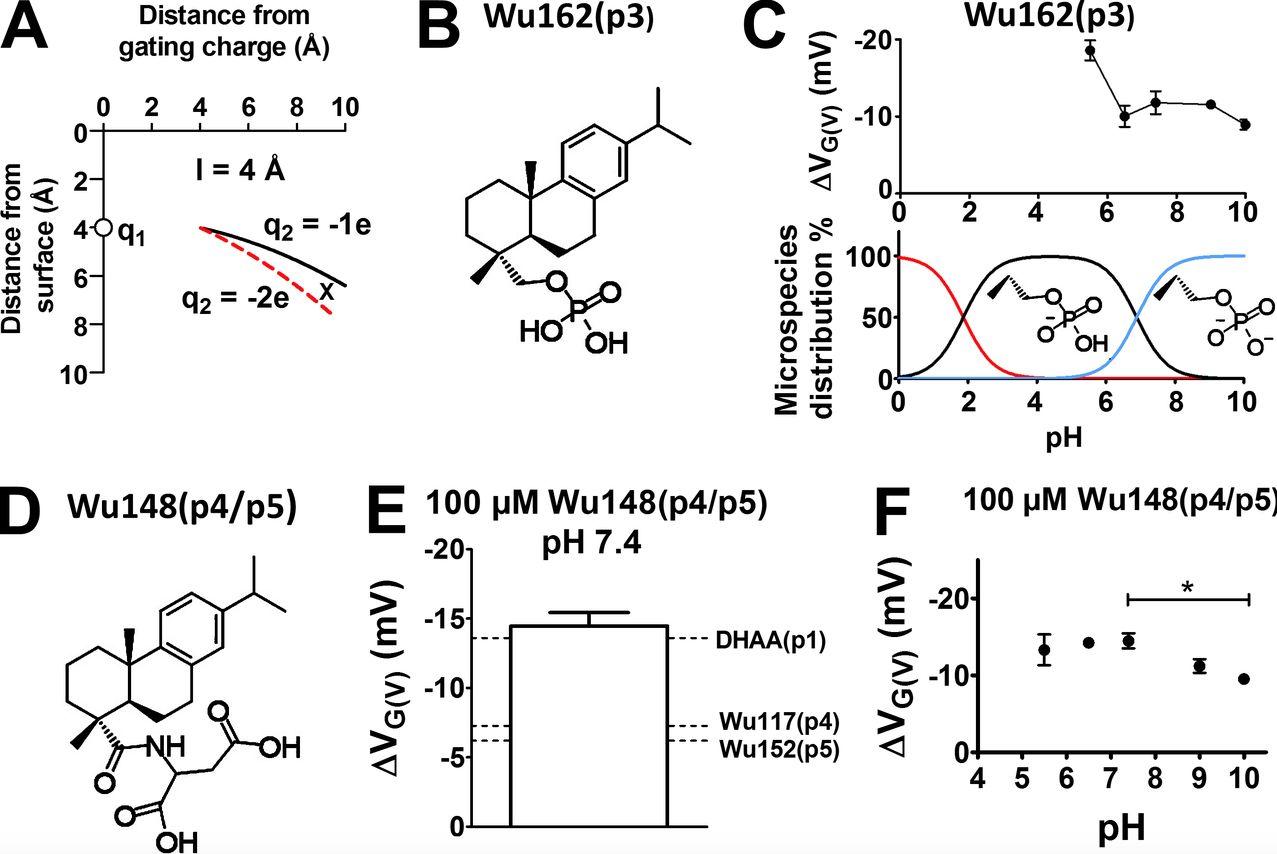

	Figure 7. Divalent DHAA derivatives are less potent than monovalent DHAA derivatives. (A) Cutoff area for charge-dependent effects for a stalk length of 4 Å (l = 4 Å). Charge q1 = 1 e at d = (0,4). q2 = ‒1 e (black line) and q2 = ‒2 e (red dashed line). In the area between the two lines (at point X), q2 = ‒1 e will be attracted toward q1 = 1 e (representing the voltage sensor S4) in the membrane, and q2 = ‒2 e will be attracted toward the water (with a small effect on S4). (B) Structure of Wu162. (C) pH dependence of the G(V) shift induced by 100 µM Wu162(p3) on the 3R Shaker KV channel (top). Mean ± SEM (n = 3–5). Calculated pH dependence for Wu162(p3) and structures of the microspecies (bottom). (D) Molecular structure of Wu148. (E) G(V) shift induced by 100 µM Wu148(p4/p5) on the 3R Shaker KV channel compared with DHAA(p1), Wu117(p4), and Wu152(p4) (Fig. 2 D). pH = 7.4. Error bars represent mean ± SEM (n = 6). (F) pH dependence of the G(V) shifts induced by 100 µM Wu148(p4/p5) on the 3R Shaker KV channel. G(V) shifts are compared with Wu148(p4/p5) at pH 7.4, one-way ANOVA with Dunnett’s multiple comparison test. *, P < 0.05. Mean ± SEM (n = 4–6).

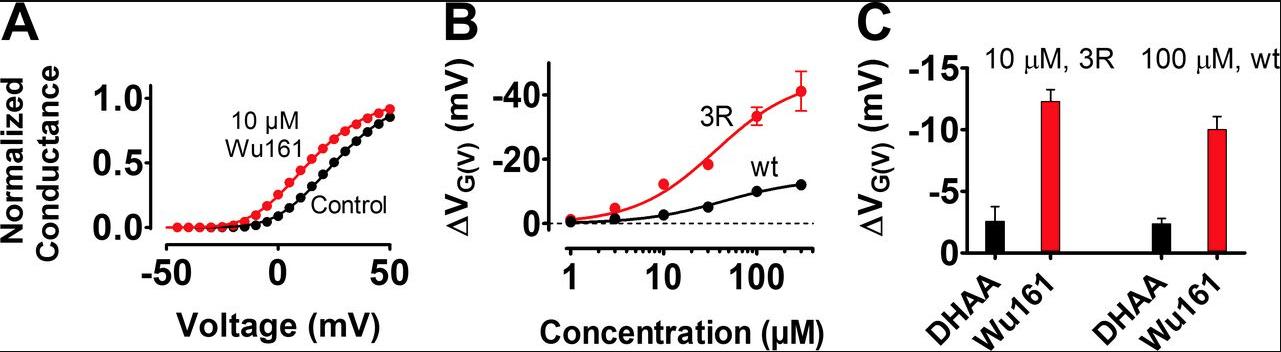

	Figure 8. Wu161(p3) is five times more potent than DHAA. (A) Normalized G(V) curves. G(V) shift = ‒12.4 mV. The 3R Shaker KV channel. pH = 7.4. (B) Concentration–response curves for Wu161(p3). pH = 7.4. Mean ± SEM (n = 3–6). c½ = 44 µM, ΔVMax = ‒13.9 mV (WT, Eq. 3). c½ = 36 µM, ΔVMax = ‒45.5 mV (3R, Eq. 3). (C) Wu161 and DHAA on the 3R (10 µM) and WT (100 µM) Shaker KV channels, respectively. pH = 7.4. Mean ± SEM (n = 3–10). Data for DHAA from Ottosson et al. (2015).

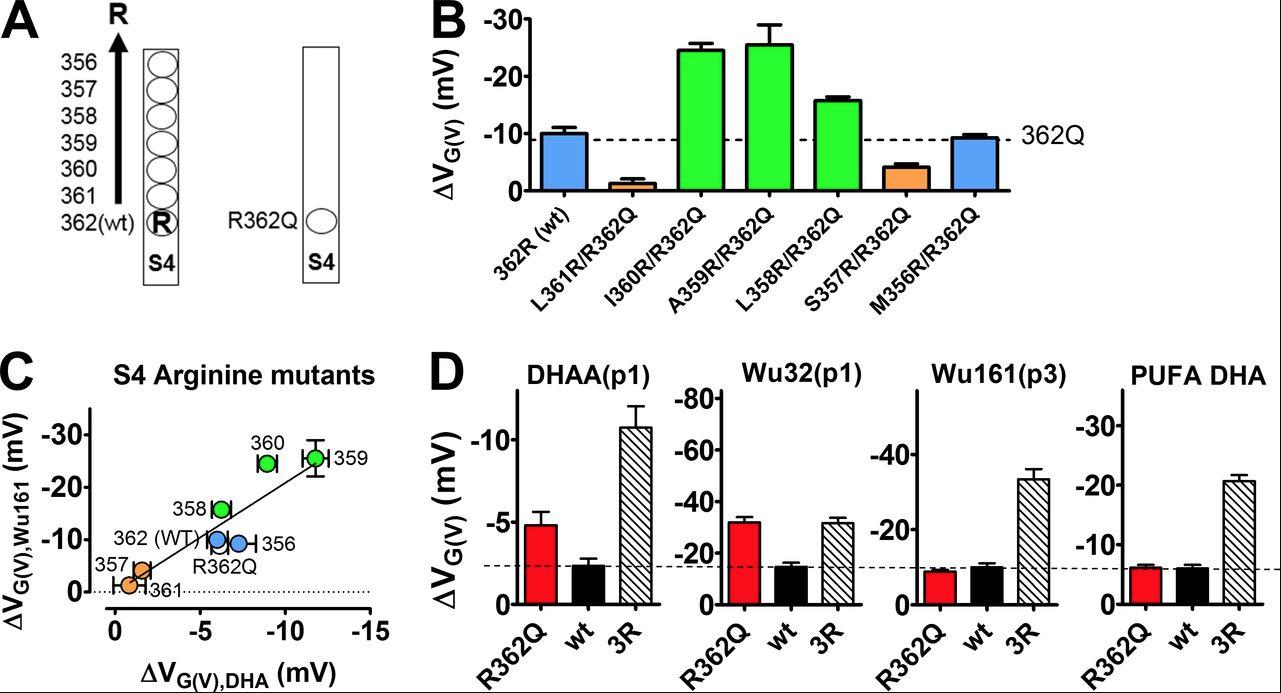

	Figure 9. The role of S4 charges for the effect of Wu161 and other DHAA derivatives. (A) Schematic picture of mutated S4 charges on the Shaker KV channel. The top gating charge (an arginine, R362 in WT) was moved step-by-step further out on S4 (left), or removed (R362Q; right). (B) Wu161-induced G(V) shifts on the Shaker KV channel S4 arginine mutants. 100 µM, pH = 7.4. Mean ± SEM (n = 3–5). Shifts are compared with R362Q (dashed line), one-way ANOVA with Dunnett’s multiple comparison test. Blue: nonsignificant, P > 0.05. Green: larger effect than for R362Q, P < 0.001. Orange: smaller effect than for R362Q, P < 0.001. Data for the mutations in control solution at pH 7.4 according to Eq. 2: R362Q (V½ = 3.4 ± 2.9 mV, s = 12.0 ± 0.8 mV, n = 4), R362 (WT) (V½ = −21.4 ± 1.8 mV, s = 10.8 ± 1.1 mV, n = 3), L361R/R362Q (V½ = −50.5 ± 1.4 mV, s = 17.9 ± 0.3 mV, n = 4), I360R/R362Q (V½ = 24.6 ± 2.3 mV, s = 12.2 ± 1.0 mV, n = 5), A359R/R362Q (V½ = 32.3 ± 3.8 mV, s = 13.0 ± 1.8 mV, n = 4), L358R/R362Q (V½ = −12.1 ± 0.9 mV, s = 11.6 ± 0.3 mV, n = 4), S357R/R362Q (V½ = −34.7 ± 2.1 mV, s = 8.1 ± 0.2 mV, n = 4), M356R/R362Q (V½ = 19.3 ± 2.5 mV, s = 9.0 ± 0.1 mV, n = 4), and A359R/M356R (3R; V½ = 25.4 ± 2.0 mV, s = 12.3 ± 0.9 mV, n = 6). (C) Correlation between G(V) shifts for the PUFA DHA (Ottosson et al., 2014) and for Wu161 on the Shaker KV channel S4 arginine mutants (100 µM, pH = 7.4). Error bars represent mean ± SEM (n = 4–14). Slope (2.1 ± 0.2) is significantly different from 0 (Pearson correlation test and linear regression are both significant). (D) Effects of DHAA(p1), Wu32(p1) (Ottosson et al., 2017), Wu161(p3), and PUFA DHA (Ottosson et al., 2014) on the R362Q, WT, and 3R Shaker KV channels (100 µM, pH = 7.4). Error bars represent mean ± SEM (n = 4–15).

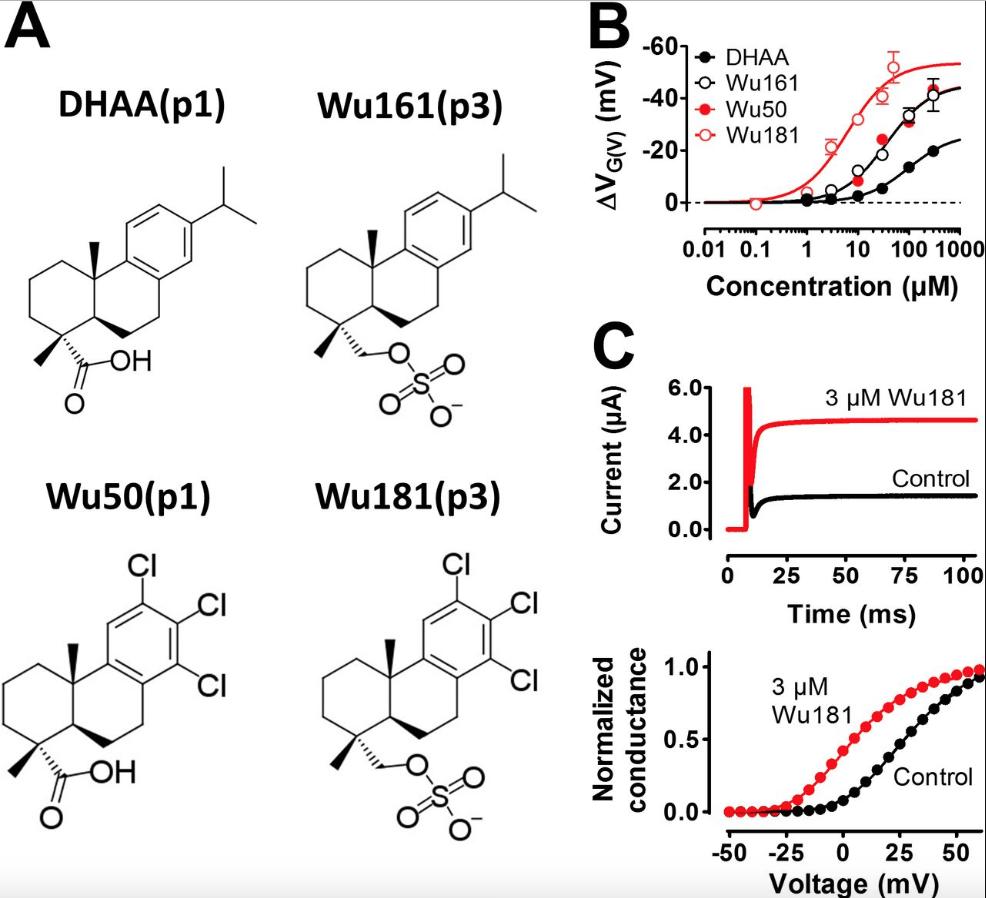

	Figure 10. Combined stalk and anchor modifications of the DHAA molecule. (A) DHAA derivatives studied. (B) Concentration–response curves for the DHAA derivatives in A on the 3R Shaker KV channel, pH = 7.4. Mean ± SEM (n = 3–9). Eq. 3: c½ = 98 µM, ΔVMax = ‒26.5 mV (DHAA); c½ = 36 µM, ΔVMax = ‒45.5 mV (Wu161); c½ = 37 µM, ΔVMax = ‒46.0 mV (Wu50); and c½ = 6.1 µM, ΔVMax = ‒53.6 mV (Wu181). Wu50 and DHAA adapted from Ottosson et al. (2015). (C) Currents at 10 mV (top) and normalized G(V) curves (bottom) for the 3R Shaker KV channel, pH = 7.4. G(V) shift = ‒20.4 mV.

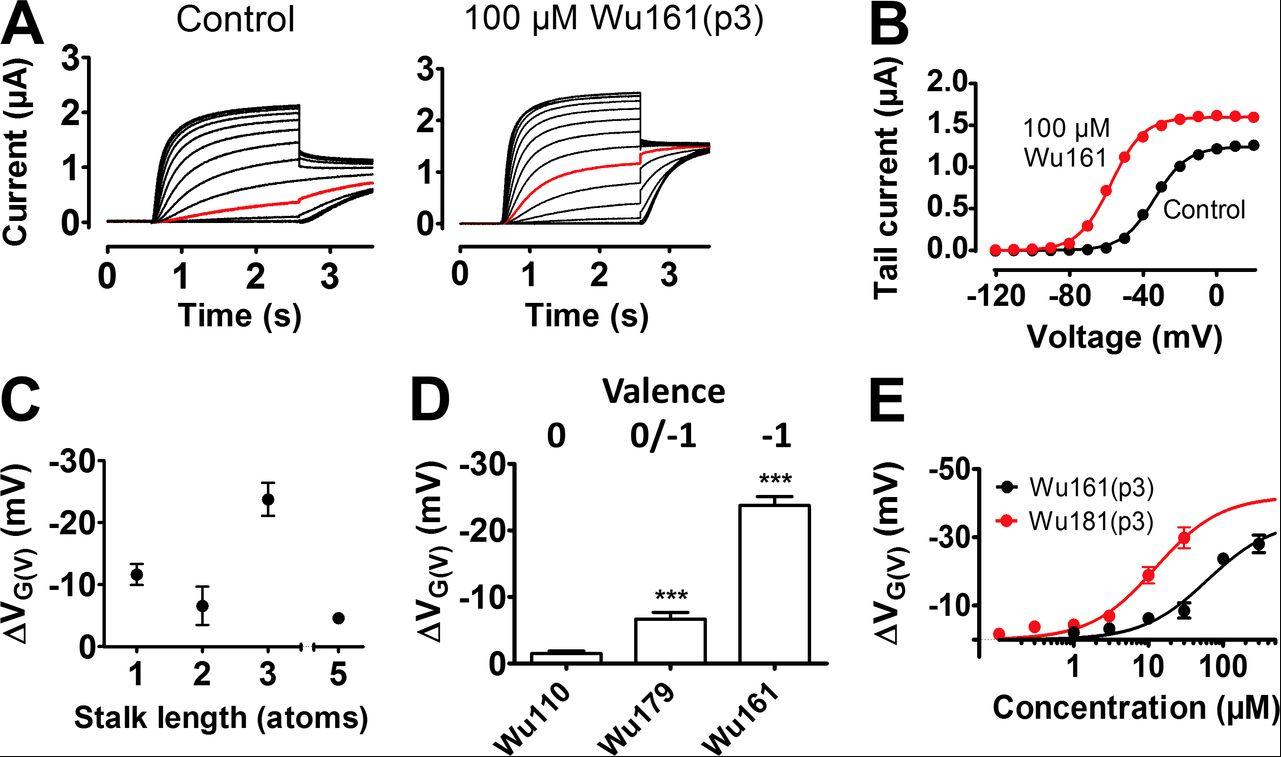

	Figure 11. DHAA derivatives open the human M channel. (A) Currents before and after application of 100 µM Wu161. Steps to voltages between ‒120 and 20 mV (in 5-mV increments) started at t = 0.7 s. At t = 2.7 s, the voltage was switched to ‒10 mV. Traces at voltage = ‒20 mV in red. (B) G(V) curves for the cell in A. G(V) shift = ‒23.8 mV. (C) G(V) shifts for compounds with different stalk lengths (100 µM). Mean ± SEM (n = 3–6). DHAA(p1) at pH = 10. Permanently charged Wu164(p2), Wu161(p3), and Wu154(p5) at pH = 7.4. (D) Compounds with different valences (100 µM). pH = 7.4. Mean ± SEM (n = 3–5). ***, P < 0.001, significantly different from 0. (E) Concentration–response curves. Mean ± SEM (n = 3–4). Eq. 3: c½ = 62 µM, ΔVMax = ‒35.0 mV (Wu161); c½ = 12 µM, ΔVMax = ‒42.1 mV (Wu181).

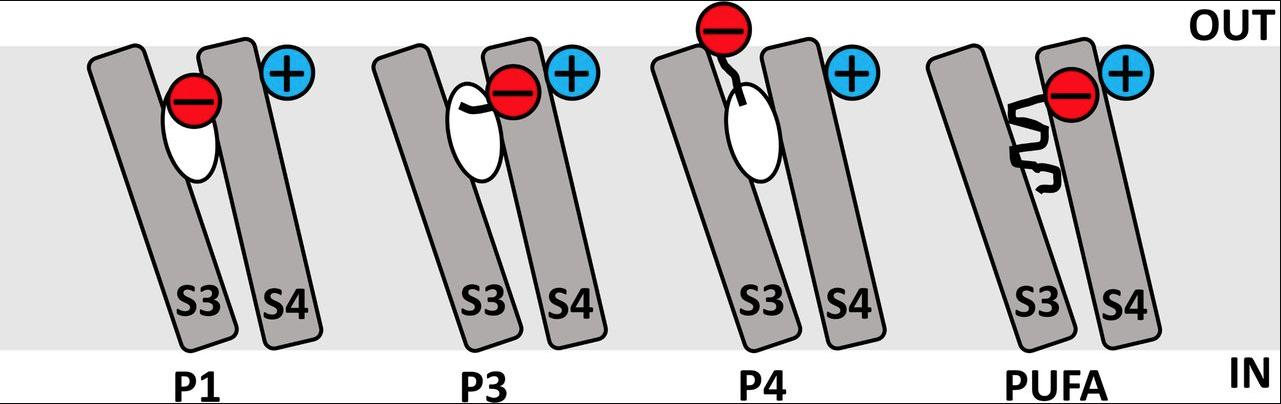

	Figure 12. Summary of suggested mechanisms. Proposed binding of four different compounds to the S3/S4 cleft. The positive charge in blue represents R362R (=R1) in the top of S4. The negative charge in red represents the charged group of the four different compounds. For P1 and P3 compounds and for PUFAs, the negative charge is suggested to be attracted to the S4 charge. For P4 compounds, the charge is suggested to be attracted to the extracellular water.

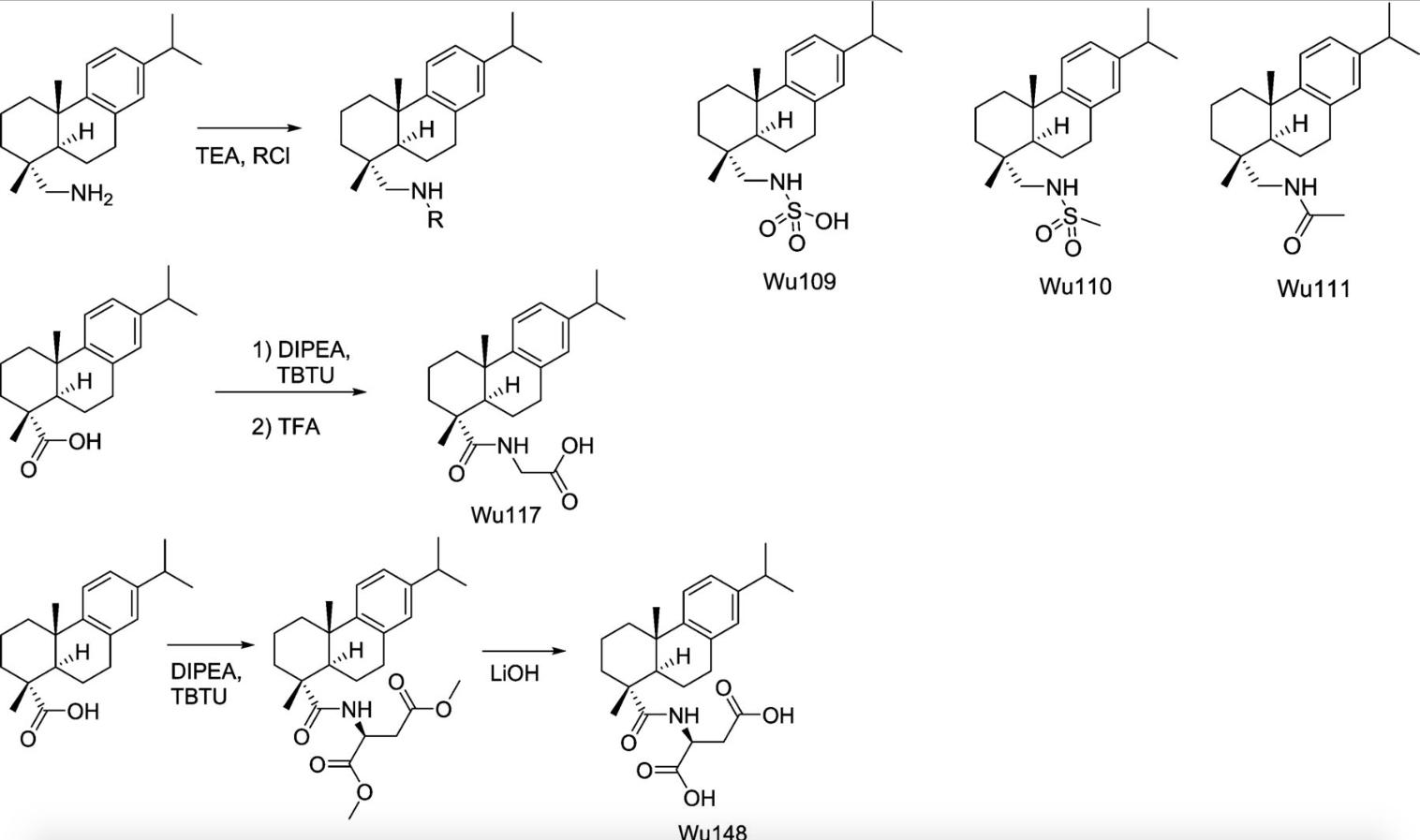

	Figure 13. Molecular structures of Wu109, Wu110, Wu111, Wu117, and Wu148, including some reactions. See Appendix for a detailed description. Full compound names: (((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)methyl)sulfamic acid (Wu109); N-(((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)methyl)methanesulfonamide (Wu110); N-(((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)methyl)acetamide (Wu111); ((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carbonyl)glycine (Wu117); and ((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carbonyl)-l-aspartic acid (Wu148). RCl, R = SO3H, -SO2Me, -COMe; TEA, triethylamine.

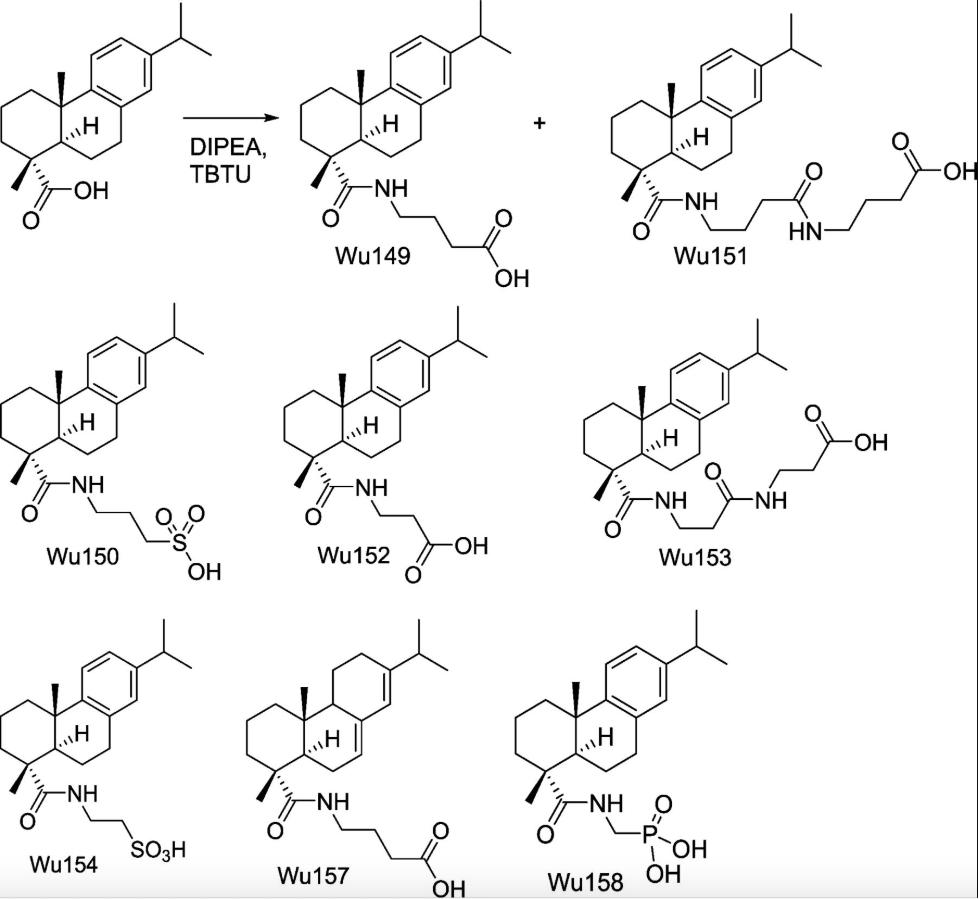

	Figure 14. Molecular structures of Wu149, Wu150, Wu151, Wu152, Wu153, Wu154, Wu157, and Wu158, including some reactions. See Appendix for a detailed description. Full compound names: 4-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)butanoic acid (Wu149); 3-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)propane-1-sulfonic acid (Wu150); 4-(4-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)butanamido)butanoic acid (Wu151); 3-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)propanoic acid (Wu152); 3-(3-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)propanamido)propanoic acid (Wu153); 2-((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)ethane-1-sulfonic acid (Wu154); 4-((1R,4aR,4bR,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,4b,10,10a-decahydrophenanthrene-1-carboxamido)butanoic acid (Wu157); and (((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthrene-1-carboxamido)methyl)phosphonic acid (Wu158).

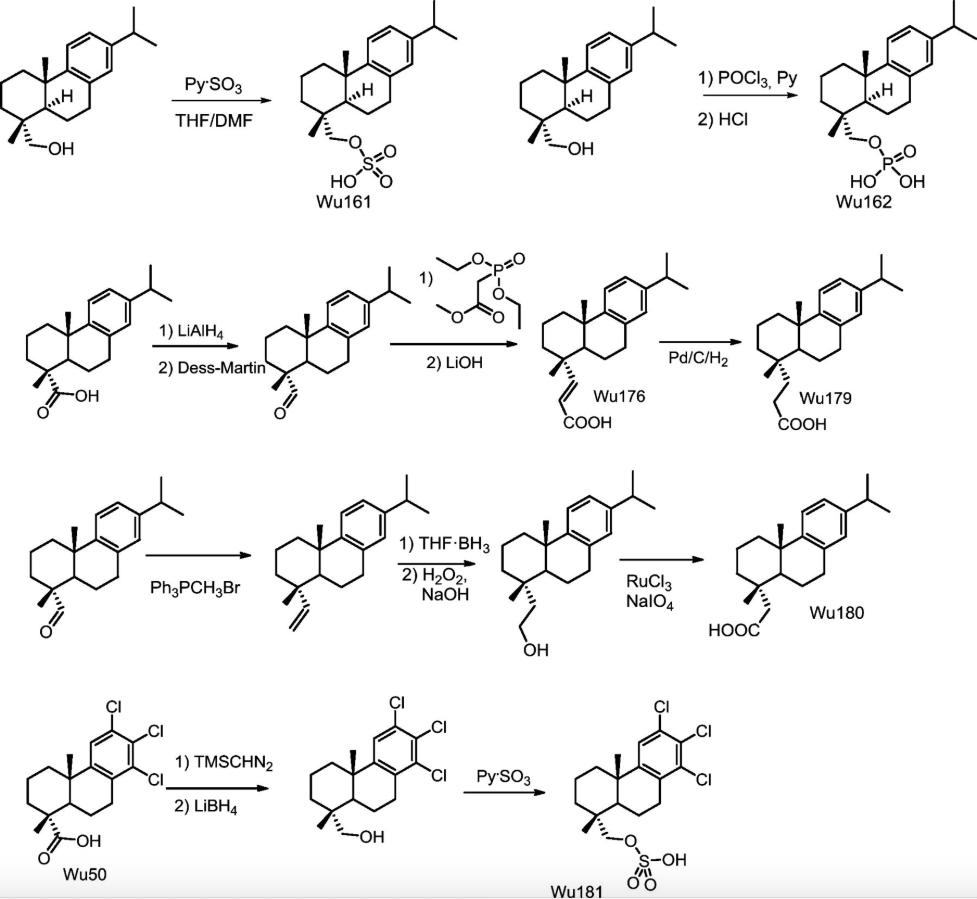

	Figure 15. Molecular structures of Wu50, Wu161, Wu162, Wu176, Wu179, Wu180, and Wu180, including some reactions. See Appendix for a detailed description. Full compound names: ((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)methyl hydrogen sulfate (Wu161); ((1R,4aS,10aR)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)methyl dihydrogen phosphate (Wu162); (E)-3-((1S,4aS)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)acrylic acid (Wu176); 3-((1S,4aS)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)propanoic acid (Wu179); 2-((1S,4aS)-7-isopropyl-1,4a-dimethyl-1,2,3,4,4a,9,10,10a-octahydrophenanthren-1-yl)acetic acid (Wu180); and ((1R,4aS,10aR)-6,7,8-trichloro-1,4a-dimethyl-2,3,4,9,10,10a-hexahydrophenanthrene-1-yl)methyl hydrogen sulfate (Wu181).

References [+] :

Börjesson, An electrostatic potassium channel opener targeting the final voltage sensor transition. 2011, Pubmed, Xenbase
