Kim E, Jeong I, Chung AY, Kim S, Kwon SH, Seong JY, Park HC.

20180430 Korea Institute of Marine Science and Technology promotion (Korea Institute of Marine Science & Technology promotion)

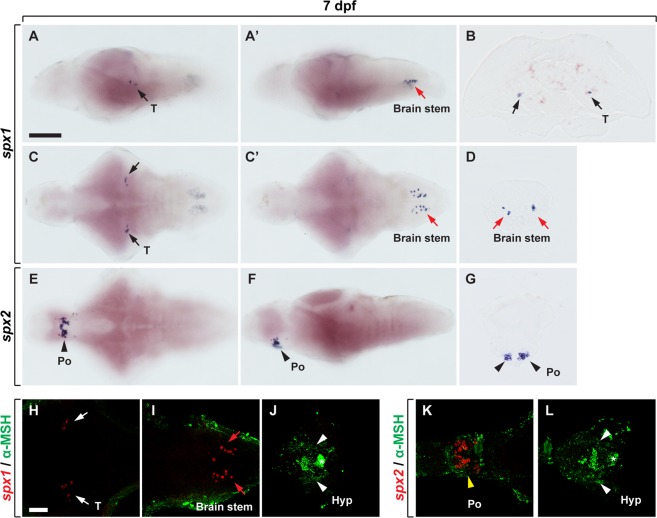

	Figure 1. Expression of spx 1 and spx 2 mRNA in the brain of zebrafish larvae. (A–G) In situ RNA hybridization with spx1 (A–D) and spx2 RNA probes (E–G) in the brain of zebrafish larvae at 7 days post-fertilisation (dpf). Lateral (A,A’,F), dorsal (C,C’), and ventral views (E) of the brain, anterior to the left. Transverse sections of the brain (B,D,G), dorsal to the top. (A–D) spx1 expression in the midbrain (A–C) and hindbrain (A’,C’,D). Black and red arrows indicate spx1 expression in the midbrain tegmentum and hindbrain, respectively. (E–G) spx2 mRNA expression in the preoptic area of the hypothalamus. Arrowheads indicate spx2 expressing cells. (E–G,K,L). (H–L) Labelling with anti-α-melanocyte stimulating hormone (α-MSH) antibody following in situ RNA hybridization with spx1 (H–J) and spx2 (K,L). Ventral views with anterior to the left. White and red arrows indicate spx1-expressing cells in the midbrain (H) and hindbrain (I), and yellow arrowhead indicates spx2-expressing cells in the preoptic area (K). White arrowheads and asterisk label the hypothalamus and pituitary gland, respectively. Abbreviation: Hyp, hypothalamus; Po, preoptic region; T, midbrain tegmentum. Scale bar: 100 μm in A,A’,C,C’,E,F,E; 50 μm in B,D,G–L.
	Figure 2. Tg(spx1:mCherry-CAAX) zebrafish express mCherry-CAAX in spx1-expressing cells. (A) Schematic of the plasmid construct for the generation of Tg(spx1:mCherry-CAAX) zebrafish. (B,C) Dorsal (B) and lateral (C) views of Tg(spx1:mCherry-CAAX) zebrafish at 4 days post-fertilisation (dpf), anterior to the left. White arrowheads designate spx1-expressing neurons in the hindbrain, and blue arrows indicate spx1+ axonal projections to the spinal cord. White arrows mark the midbrain tegmentum, and yellow arrows label spx1+ axonal projections to the forebrain. (D–I) In situ RNA hybridization of 3 dpf wildtype and Tg(spx1:mCherry-CAAX) embryos with spx1 (D,F,H) and mcherry mRNA (E,G,I), respectively. Dorsal views of whole-mount embryos with anterior to the left (D,E), and transverse sections of the brain with dorsal to the top (F–I). Black and red arrows indicate labelled cells in the midbrain tegmentum and hindbrain, respectively. Scale bar: 50 μm in B,C,F–I; 100 μm in D,E.

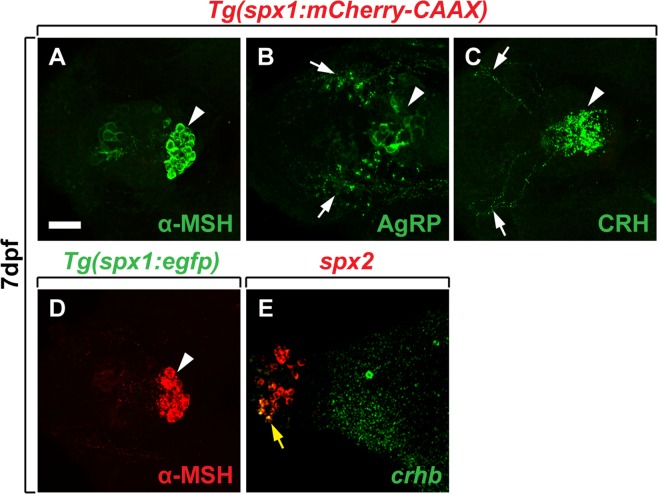

	Figure 3. spx 1 and spx 2 expression in the hypothalamic area of zebrafish larvae. (A–E) Labelling of 7 dpf Tg(spx1:mCherry-CAAX) (A–C), Tg(spx1:gal4; uas:egfp) (D), and wildtype larvae (E) with antibodies against α-melanocyte-stimulating hormone (α-MSH) (A,D), agouti-related peptide (AgRP) (B), corticotropin-releasing hormone (CRH) (C), and corticotropin releasing hormone b (crhb) RNA probe (E). Ventral views with anterior to the left. White arrowheads indicate α-MSH expression in the pituitary gland (A,D), and white arrows label AgRP-expressing neurons in the ventral hypothalamus (B) and CRH+ axons in the hypothalamus (C). (E) Expression of spx2 and crhb mRNA in the larval brain revealed by in situ RNA hybridization. Yellow arrow designates neurons co-expressing spx2 and crhb mRNA in the preoptic region of the hypothalamus. Scale bar: 25 μm.

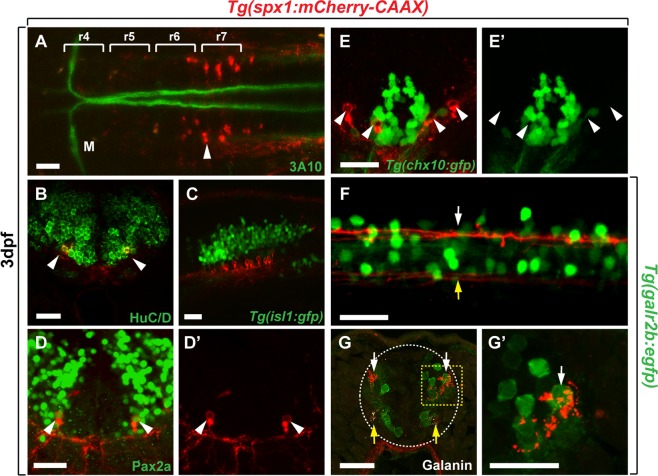

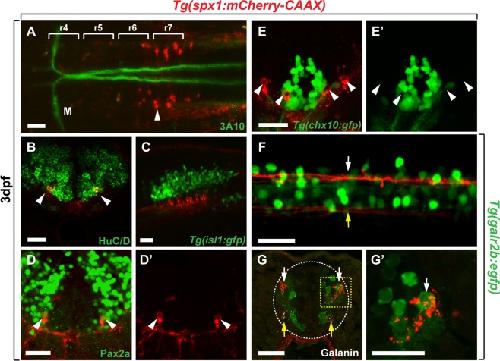

	Figure 4. Characterisation of hindbrain SPX1 neurons and their projections. Dorsal (A) and lateral (C,F) views of zebrafish larvae at 3 days post-fertilisation (dpf), anterior to the left. Transverse sections of the hindbrain (B,D,D’,E,E’) and spinal cord (G,G’) at 3 dpf, dorsal to the top. (A,B) Labelling of Tg(spx1:mCherry-CAAX) larvae with anti-3A10 and anti-HuC/D antibodies to detect Mauthner axons (A, green) and post-mitotic neurons (B, green), respectively. (C) Tg(spx1:mCherry-CAAX); Tg(isl1:gfp) larvae to detect hindbrain SPX1 neurons and cranial motor neurons (green). (D,D’) Labelling of Tg(spx1:mCherry-CAAX) larvae with anti-Pax2 antibody (green). mCherry-CAAX fluorescence is detected in the membrane surrounding Pax2a+ neuronal cell bodies. (E,E’) Transverse section of the hindbrain of Tg(spx1:mCherry-CAAX); Tg(chx10:gfp) larvae. Arrowheads indicate spx:mCherry+/chx10:EGFP− neurons. (F) Lateral view of the spinal cord of Tg(spx1:mCherry-CAAX); Tg(galr2b:egfp) larvae. Arrows indicate spinal projections of hindbrain SPX1 neurons. (G,G’) Transverse sections of the spinal cord of Tg(spx1:mCherry-CAAX); Tg(galr2b:egfp) larvae. White arrows indicate the axonal projections of hindbrain SPX1 neurons, which interact with galr2b-expressing neurons in the dorsal spinal cord. Yellow arrows indicate the axonal projections of hindbrain SPX1 neurons in the ventral spinal cord. Abbreviation: M, Mauthner neuron; r, rhombomere. Scale bar: 25 μm.

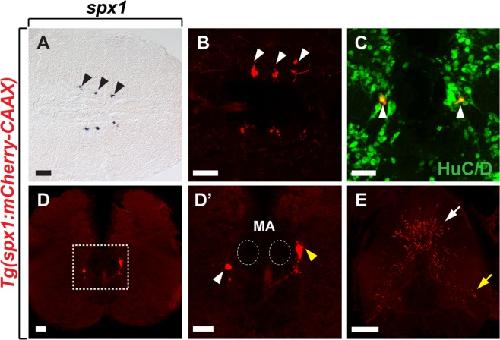

	Figure 5. Characterisation of SPX1 neurons in the hindbrain of adult zebrafish. Horizontal (A,B) and transverse (C–E) sections of the brain (A–D’) and spinal cord (E) of adult Tg(spx1:mCherry-CAAX) zebrafish. (A,B) Anterior is to the left and (C–E) dorsal is to the top. SPX1 neurons revealed by whole-mount in situ RNA hybridization with spx1 RNA (A) and spx1:mCherry expression (B). (C) Labelling of the hindbrain of Tg(spx1:mCherry-CAAX) adult zebrafish with anti-HuC/D antibody. (B,C) White arrowheads indicate spx1:mCherry neurons in the brainstem. (D) spx1:mCherry expression is detected in the inferior reticular formation region of the hindbrain. (D’) Magnified image of the boxed area in the panel D. Dotted circles mark the position of Mauthner axons in the hindbrain. White and yellow arrowheads indicate the inferior reticular formation region and vagal motor nucleus region, respectively. (E) Axons of hindbrain SPX1 neurons projecting to the spinal cord. White and yellow arrows indicate axonal projections in the dorsal and ventral spinal cord, respectively. Abbreviation: MA, Mauthner axon. Scale bar: 50 μm.

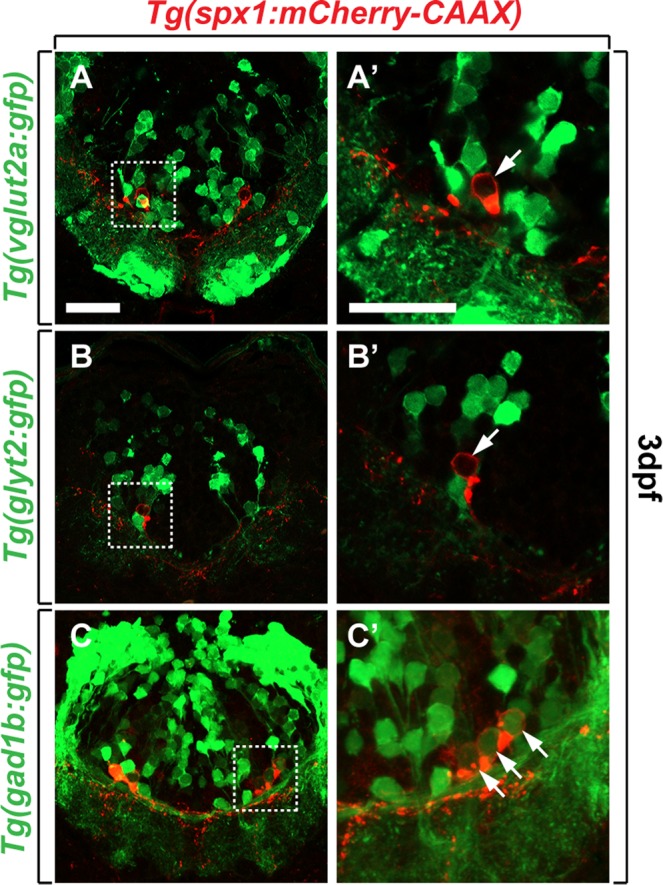

	Figure 6. Identification of neurotransmitter phenotype of SPX1 neurons in the hindbrain. (A–C’) Transverse sections of the hindbrain of Tg(spx1:mCherry-CAAX); Tg(vglut2a:gfp) (A,A’), Tg(spx1:mCherry-CAAX); Tg(glyt2:gfp) (B,B’), and Tg(spx1:mCherry-CAAX); Tg(gad1b:gfp) (C,C’) at 3 days post-fertilisation (dpf), dorsal to the top. Panels labelled with a prime are the magnified images of the boxed areas in each panel. Arrows mark vglut2a-negative (A’), glyt2-negative (B’) and gad1b-positive (C’) spx1-expressing neurons in the hindbrain. Scale bar: 25 μm.

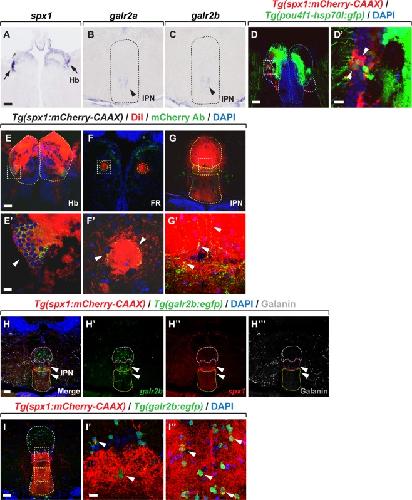

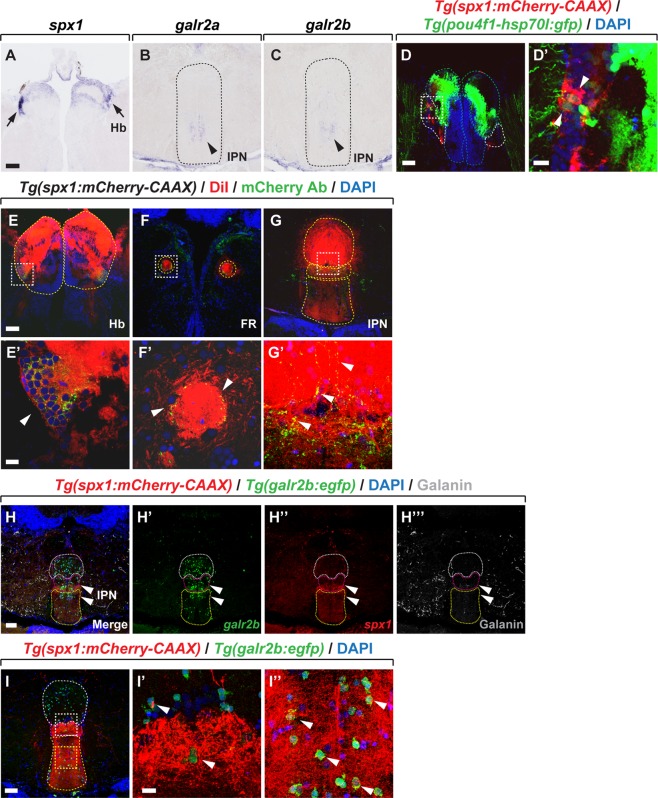

	Figure 7. SPX1 and GALR2a/2b expression in the habenula and interpeduncular nucleus. Transverse sections of the adult zebrafish brain, dorsal to the top. (A–C) In situ RNA hybridization in the adult brain with spx1 (A), galr2a (B), and galr2b (C) RNA. (A) Arrows indicate the expression of spx1 mRNA in the habenula. Black arrowheads indicate galr2a and galr2b mRNA expression, respectively, in the IPN (B,C). (D,D’) Transverse sections of the habenula (D) of Tg(spx1:mCherry-CAAX); Tg(pou4f1-hsp70l:gfp) zebrafish. (D) White, green, and blue dotted lines mark lateral and medial subdivisions of the dorsal habenula and ventral habenula, respectively. (D’) is a high magnification image of the box area in (D). White arrowheads indicate pou4fl+ spx1:mCherry-expressing cell body in the dHbM. (E–G’) Transverse section of the Hb (E,E’), FR (F,F’), and IPN (G,G’) of DiI-labelled Tg(spx1:mCherry-CAAX) zebrafish. Panel E’–G’ are high magnification images of white boxes in panel E–G. Yellow dotted lines mark DiI-labelled Hb (E), FR (F), and IPN (G). White arrowheads indicate that co-localization of DiI and mCherry fluorescence. (H–I”) Transverse sections of Tg(spx1:mCherry-CAAX); Tg(galr2b:egfp) zebrafish, which were labelled with DAPI. White, magenta, and yellow dotted lines mark the dorsal, intermediate, and ventral IPN, respectively. (H–H”’) Section views labelled with anti-galanin antibody. White arrowheads indicate the intermediate and ventral IPN, where spx1:mCherry+ axonal projections were observed. (I–I”) Panel I’ and I” are high magnification images of white and yellow boxes of panel I, respectively. White arrowheads indicate close contacts between EGFP+ cells and mCherry+ nerve fibres. Abbreviation: FR, fasciculus retroflexus; Hb, habenula; IPN, interpeduncular nucleus; Scale bar: 50 μm in A–I. 10 μm in D’–I”.
