Nat Commun
2018 Dec 21;91:5432. doi: 10.1038/s41467-018-07870-y.
Show Gene links
Show Anatomy links
Structure of transcribing RNA polymerase II-nucleosome complex.
Farnung L, Vos SM, Cramer P.
???displayArticle.abstract???
Transcription of eukaryotic protein-coding genes requires passage of RNA polymerase II (Pol II) through nucleosomes, but it is unclear how this is achieved. Here we report the cryo-EM structure of transcribing Saccharomyces cerevisiae Pol II engaged with a downstream nucleosome core particle at an overall resolution of 4.4 Å. Pol II and the nucleosome are observed in a defined relative orientation that is not predicted. Pol II contacts both sides of the nucleosome dyad using its clamp head and lobe domains. Structural comparisons reveal that the elongation factors TFIIS, DSIF, NELF, SPT6, and PAF1 complex can be accommodated on the Pol II surface in the presence of the oriented nucleosome. Our results provide a starting point for analysing the mechanisms of chromatin transcription.

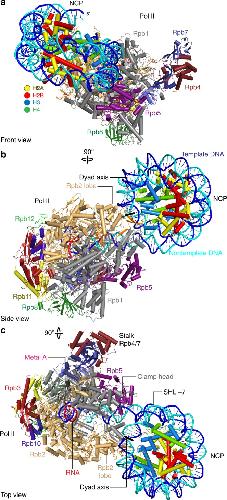

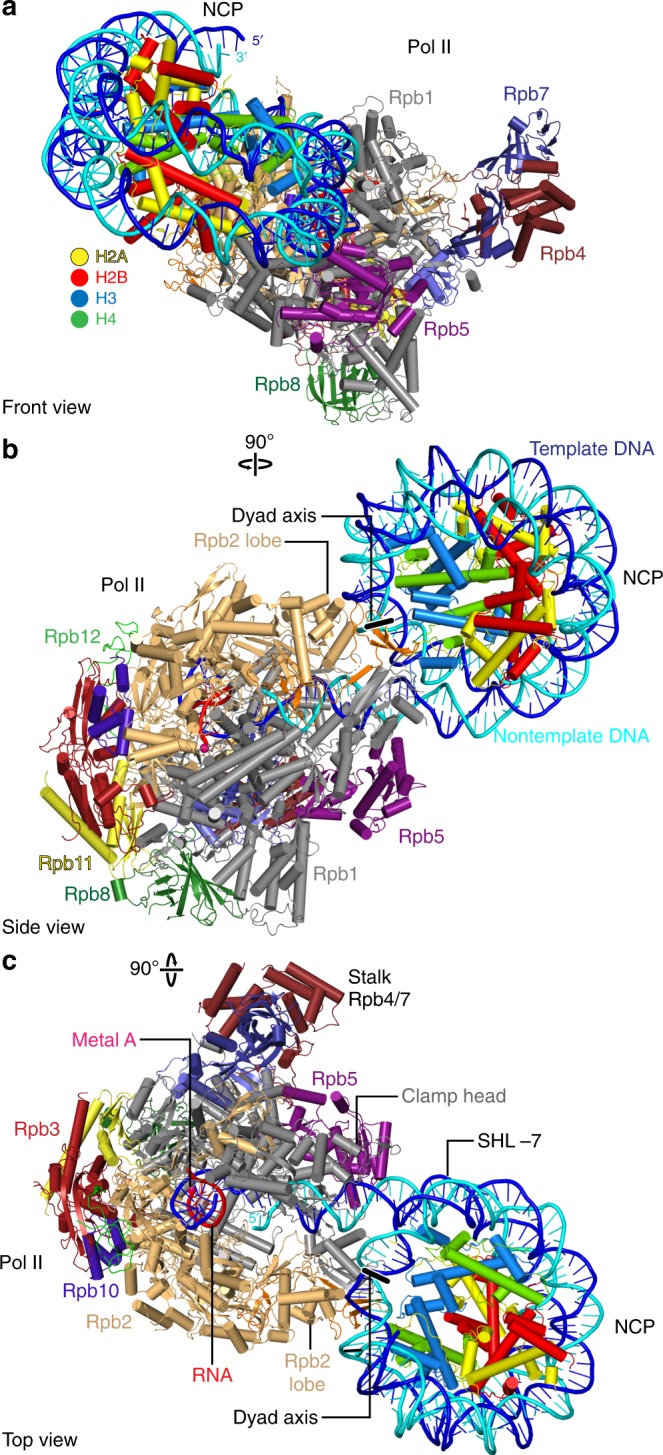

Fig. 1. Structure of Pol II–NCP complex. a–c Cartoon model viewed from the front (a), side (b), and top (c). Pol II subunits Rpb1–Rpb12, template DNA, non-template DNA, RNA, H2A, H2B, H3 and H4 are coloured in silver, sand, ruby, deep purple, slate, cyan, deepblue, forest green, orange, purple, yellow, green, blue, cyan, red, yellow, crimson, light blue and green, respectively. Colour code used throughout. Histone octamer dyad axis is indicated as a black line with white outline

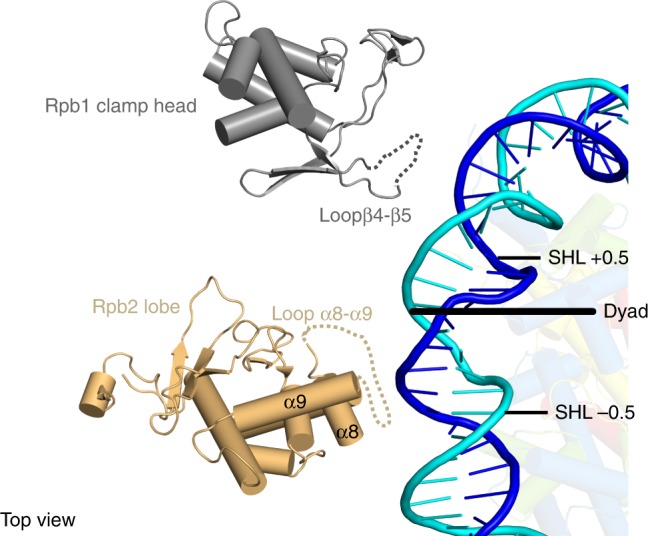

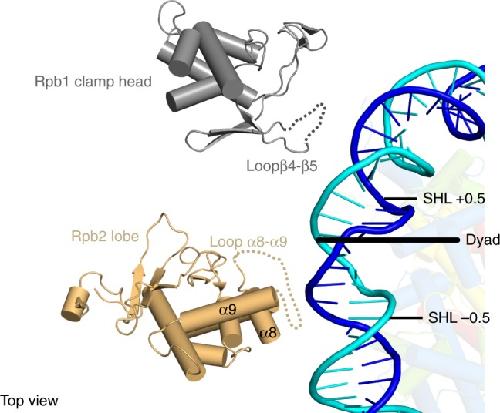

Fig. 2. Pol II–NCP contacts. Rpb1 clamp head and Rpb2 lobe domains contact nucleosomal DNA around the NCP dyad. Clamp head and lobe domains are shown. Loops contacting nucleosomal DNA are indicated

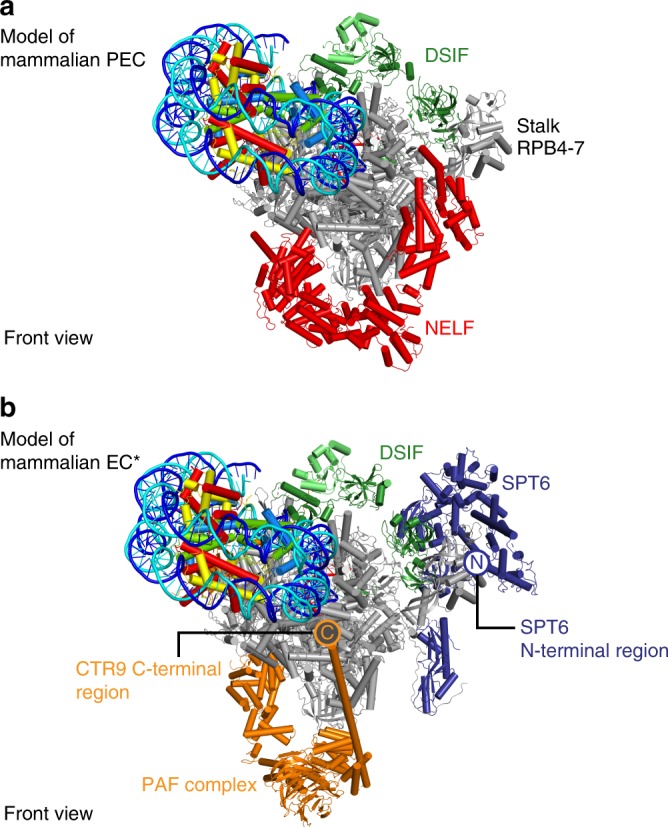

Fig. 3. Accommodation of elongation factors. a Superposition of Pol II–NCP structure with the mammalian paused elongation complex PEC (PDB code 6GML) provides the location of DSIF and NELF. b Superposition of the mammalian activated elongation complex EC* (PDB code 6GMH) provides the location of PAF1 complex (PAF) and SPT6
Adams,
PHENIX: a comprehensive Python-based system for macromolecular structure solution.
2010, Pubmed
Adams,
PHENIX: a comprehensive Python-based system for macromolecular structure solution.
2010,
Pubmed Adelman,
Efficient release from promoter-proximal stall sites requires transcript cleavage factor TFIIS.
2005,
Pubmed Belotserkovskaya,
FACT facilitates transcription-dependent nucleosome alteration.
2003,
Pubmed Bortvin,
Evidence that Spt6p controls chromatin structure by a direct interaction with histones.
1996,
Pubmed Clapier,
Mechanisms of action and regulation of ATP-dependent chromatin-remodelling complexes.
2017,
Pubmed Dyer,
Reconstitution of nucleosome core particles from recombinant histones and DNA.
2004,
Pubmed Ehara,
Structure of the complete elongation complex of RNA polymerase II with basal factors.
2017,
Pubmed Emsley,
Features and development of Coot.
2010,
Pubmed Farnung,
Nucleosome-Chd1 structure and implications for chromatin remodelling.
2017,
Pubmed Formosa,
Defects in SPT16 or POB3 (yFACT) in Saccharomyces cerevisiae cause dependence on the Hir/Hpc pathway: polymerase passage may degrade chromatin structure.
2002,
Pubmed Gilchrist,
Pausing of RNA polymerase II disrupts DNA-specified nucleosome organization to enable precise gene regulation.
2010,
Pubmed Gilmour,
RNA polymerase II interacts with the promoter region of the noninduced hsp70 gene in Drosophila melanogaster cells.
1986,
Pubmed Hauk,
Structural insights into regulation and action of SWI2/SNF2 ATPases.
2011,
Pubmed Kettenberger,
Complete RNA polymerase II elongation complex structure and its interactions with NTP and TFIIS.
2004,
Pubmed Kim,
The human PAF1 complex acts in chromatin transcription elongation both independently and cooperatively with SII/TFIIS.
2010,
Pubmed Kireeva,
Nucleosome remodeling induced by RNA polymerase II: loss of the H2A/H2B dimer during transcription.
2002,
Pubmed Kornberg,
Chromatin structure: a repeating unit of histones and DNA.
1974,
Pubmed Kujirai,
Structural basis of the nucleosome transition during RNA polymerase II passage.
2018,
Pubmed Kwak,
Control of transcriptional elongation.
2013,
Pubmed Lai,
Understanding nucleosome dynamics and their links to gene expression and DNA replication.
2017,
Pubmed Lehmann,
Molecular basis of RNA-dependent RNA polymerase II activity.
2007,
Pubmed Li,
The elongation factor Spn1 is a multi-functional chromatin binding protein.
2018,
Pubmed Luger,
Expression and purification of recombinant histones and nucleosome reconstitution.
1999,
Pubmed Luger,
Crystal structure of the nucleosome core particle at 2.8 A resolution.
1997,
Pubmed Martinez-Rucobo,
Structural basis of transcription elongation.
2013,
Pubmed Maskell,
Structural basis for retroviral integration into nucleosomes.
2015,
Pubmed Mavrich,
Nucleosome organization in the Drosophila genome.
2008,
Pubmed McKnight,
Extranucleosomal DNA binding directs nucleosome sliding by Chd1.
2011,
Pubmed Musso,
The yeast CDP1 gene encodes a triple-helical DNA-binding protein.
2000,
Pubmed Nakane,
Characterisation of molecular motions in cryo-EM single-particle data by multi-body refinement in RELION.
2018,
Pubmed Nechaev,
Global analysis of short RNAs reveals widespread promoter-proximal stalling and arrest of Pol II in Drosophila.
2010,
Pubmed Ng,
Targeted recruitment of Set1 histone methylase by elongating Pol II provides a localized mark and memory of recent transcriptional activity.
2003,
Pubmed Nodelman,
Interdomain Communication of the Chd1 Chromatin Remodeler across the DNA Gyres of the Nucleosome.
2017,
Pubmed
,
Xenbase Pettersen,
UCSF Chimera--a visualization system for exploratory research and analysis.
2004,
Pubmed Rosenthal,
Optimal determination of particle orientation, absolute hand, and contrast loss in single-particle electron cryomicroscopy.
2003,
Pubmed Skene,
The nucleosomal barrier to promoter escape by RNA polymerase II is overcome by the chromatin remodeler Chd1.
2014,
Pubmed Studitsky,
Overcoming a nucleosomal barrier to transcription.
1995,
Pubmed Sundaramoorthy,
Structure of the chromatin remodelling enzyme Chd1 bound to a ubiquitinylated nucleosome.
2018,
Pubmed
,
Xenbase Sydow,
Structural basis of transcription: mismatch-specific fidelity mechanisms and paused RNA polymerase II with frayed RNA.
2009,
Pubmed Teves,
Transcribing through the nucleosome.
2014,
Pubmed Vasudevan,
Crystal structures of nucleosome core particles containing the '601' strong positioning sequence.
2010,
Pubmed
,
Xenbase Vos,
Structure of activated transcription complex Pol II-DSIF-PAF-SPT6.
2018,
Pubmed Vos,
Structure of paused transcription complex Pol II-DSIF-NELF.
2018,
Pubmed Xu,
Architecture of the RNA polymerase II-Paf1C-TFIIS transcription elongation complex.
2017,
Pubmed Yoh,
The Iws1:Spt6:CTD complex controls cotranscriptional mRNA biosynthesis and HYPB/Setd2-mediated histone H3K36 methylation.
2008,
Pubmed Yoh,
The Spt6 SH2 domain binds Ser2-P RNAPII to direct Iws1-dependent mRNA splicing and export.
2007,
Pubmed Zeitlinger,
RNA polymerase stalling at developmental control genes in the Drosophila melanogaster embryo.
2007,
Pubmed Zivanov,
New tools for automated high-resolution cryo-EM structure determination in RELION-3.
2018,
Pubmed
