Parallel tagged amplicon sequencing of transcriptome-based genetic markers for Triturus newts with the Ion Torrent next-generation sequencing platform.
Wielstra B, Duijm E, Lagler P, Lammers Y, Meilink WR, Ziermann JM, Arntzen JW.
???displayArticle.abstract???
Next-generation sequencing is a fast and cost-effective way to obtain sequence data for nonmodel organisms for many markers and for many individuals. We describe a protocol through which we obtain orthologous markers for the crested newts (Amphibia: Salamandridae: Triturus), suitable for analysis of interspecific hybridization. We use transcriptome data of a single Triturus species and design 96 primer pairs that amplify c. 180 bp fragments positioned in 3-prime untranslated regions. Next, these markers are tested with uniplex PCR for a set of species spanning the taxonomical width of the genus Triturus. The 52 markers that consistently show a single band of expected length at gel electrophoreses for all tested crested newt species are then amplified in five multiplex PCRs (with a plexity of ten or eleven) for 132 individual newts: a set of 84 representing the seven (candidate) species and a set of 48 from a presumed hybrid population. After pooling multiplexes per individual, unique tags are ligated to link amplicons to individuals. Subsequently, individuals are pooled equimolar and sequenced on the Ion Torrent next-generation sequencing platform. A bioinformatics pipeline identifies the alleles and recodes these to a genotypic format. Next, we test the utility of our markers. baps allocates the 84 crested newt individuals representing (candidate) species to their expected (candidate) species, confirming the markers are suitable for species delineation. newhybrids, a hybrid index and hiest confirm the 48 individuals from the presumed hybrid population to be genetically admixed, illustrating the potential of the markers to identify interspecific hybridization. We expect the set of markers we designed to provide a high resolving power for analysis of hybridization in Triturus.

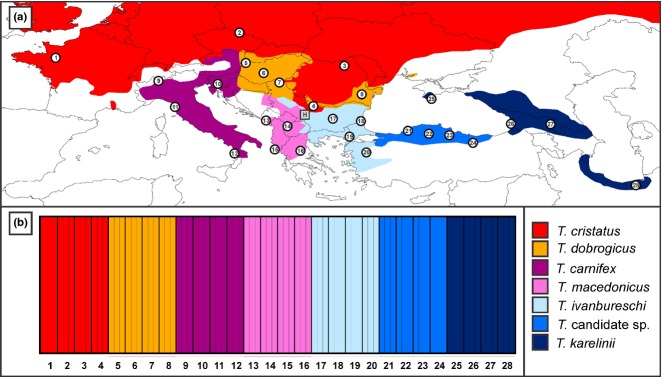

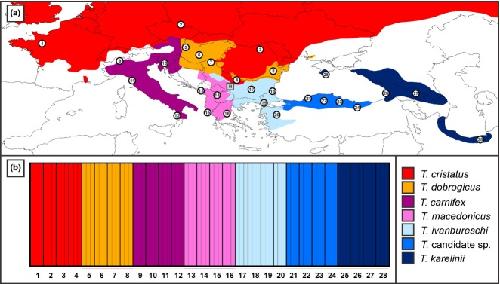

Fig 1. The potential of our methodological approach to delineate species. The map (a) shows the distribution of the seven crested newt (candidate) species, represented by different colours, and the geographical position of four populations sampled for each (numbered 1–28; n = 3 individuals per population). The grey square labelled ‘H’ is a genetically admixed population in the contact zone of Triturus ivanbureschi and Triturus macedonicus. Sampling details can be found in Table2 and Table S3, Supporting information. The baps plot (b), created with distruct (Rosenberg 2004), shows that each individual from populations 1–28 is allocated to its respective species.

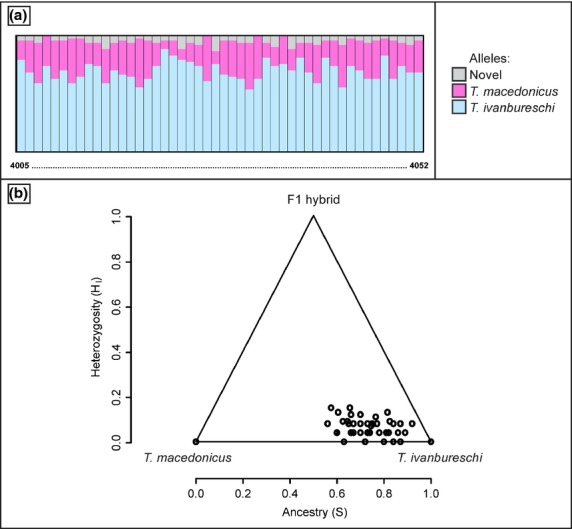

Fig 2. The potential of our methodological approach to detect genetic admixture. For a genetically admixed population positioned in the contact zone of Triturus ivanbureschi and Triturus macedonicus (the grey square labelled ‘H’ in Fig.1a), we show the proportion of alleles derived from the two parent species (a) and heterozygosity and ancestry as determined with hiest (b).
Anderson,
A model-based method for identifying species hybrids using multilocus genetic data.
2002, Pubmed
Anderson,
A model-based method for identifying species hybrids using multilocus genetic data.
2002,
Pubmed Arntzen,
Asymmetric viability of reciprocal-cross hybrids between crested and marbled newts (Triturus cristatus and T. Marmoratus).
2009,
Pubmed Baird,
Rapid SNP discovery and genetic mapping using sequenced RAD markers.
2008,
Pubmed Bybee,
Targeted amplicon sequencing (TAS): a scalable next-gen approach to multilocus, multitaxa phylogenetics.
2011,
Pubmed Calboli,
The need for jumpstarting amphibian genome projects.
2011,
Pubmed Coombs,
create: a software to create input files from diploid genotypic data for 52 genetic software programs.
2008,
Pubmed Corander,
Enhanced Bayesian modelling in BAPS software for learning genetic structures of populations.
2008,
Pubmed Davey,
Genome-wide genetic marker discovery and genotyping using next-generation sequencing.
2011,
Pubmed Ekblom,
Applications of next generation sequencing in molecular ecology of non-model organisms.
2011,
Pubmed Espregueira Themudo,
A combination of techniques proves useful in the development of nuclear markers in the newt genus Triturus.
2009,
Pubmed Everett,
Short reads and nonmodel species: exploring the complexities of next-generation sequence assembly and SNP discovery in the absence of a reference genome.
2011,
Pubmed Excoffier,
Surfing during population expansions promotes genetic revolutions and structuration.
2008,
Pubmed Fitzpatrick,
Estimating ancestry and heterozygosity of hybrids using molecular markers.
2012,
Pubmed Garvin,
Application of single nucleotide polymorphisms to non-model species: a technical review.
2010,
Pubmed Geraldes,
SNP discovery in black cottonwood (Populus trichocarpa) by population transcriptome resequencing.
2011,
Pubmed Grabherr,
Full-length transcriptome assembly from RNA-Seq data without a reference genome.
2011,
Pubmed Hong,
Intron size, abundance, and distribution within untranslated regions of genes.
2006,
Pubmed Jennings,
Speciational history of Australian grass finches (Poephila) inferred from thirty gene trees.
2005,
Pubmed Lammers,
SNP genotyping for detecting the 'rare allele phenomenon' in hybrid zones.
2013,
Pubmed Lemmon,
High-throughput identification of informative nuclear loci for shallow-scale phylogenetics and phylogeography.
2012,
Pubmed
,
Xenbase Lemmon,
Anchored hybrid enrichment for massively high-throughput phylogenomics.
2012,
Pubmed Li,
Fast and accurate short read alignment with Burrows-Wheeler transform.
2009,
Pubmed Li,
The Sequence Alignment/Map format and SAMtools.
2009,
Pubmed Makalowski,
Evolutionary parameters of the transcribed mammalian genome: an analysis of 2,820 orthologous rodent and human sequences.
1998,
Pubmed Mardis,
A decade's perspective on DNA sequencing technology.
2011,
Pubmed McCormack,
Applications of next-generation sequencing to phylogeography and phylogenetics.
2013,
Pubmed Nadachowska,
Divergence in the face of gene flow: the case of two newts (amphibia: salamandridae).
2009,
Pubmed Nystedt,
The Norway spruce genome sequence and conifer genome evolution.
2013,
Pubmed O'Neill,
Parallel tagged amplicon sequencing reveals major lineages and phylogenetic structure in the North American tiger salamander (Ambystoma tigrinum) species complex.
2013,
Pubmed Orgel,
Selfish DNA: the ultimate parasite.
1980,
Pubmed Pavy,
Development of high-density SNP genotyping arrays for white spruce (Picea glauca) and transferability to subtropical and nordic congeners.
2013,
Pubmed Peterson,
Double digest RADseq: an inexpensive method for de novo SNP discovery and genotyping in model and non-model species.
2012,
Pubmed Rothberg,
An integrated semiconductor device enabling non-optical genome sequencing.
2011,
Pubmed Seeb,
Single-nucleotide polymorphism (SNP) discovery and applications of SNP genotyping in nonmodel organisms.
2011,
Pubmed Smith,
Target capture and massively parallel sequencing of ultraconserved elements for comparative studies at shallow evolutionary time scales.
2014,
Pubmed Sun,
LTR retrotransposons contribute to genomic gigantism in plethodontid salamanders.
2012,
Pubmed Twyford,
Next-generation hybridization and introgression.
2012,
Pubmed Wielstra,
Postglacial species displacement in Triturus newts deduced from asymmetrically introgressed mitochondrial DNA and ecological niche models.
2012,
Pubmed Wielstra,
Tracing glacial refugia of Triturus newts based on mitochondrial DNA phylogeography and species distribution modeling.
2013,
Pubmed Wielstra,
Unraveling the rapid radiation of crested newts (Triturus cristatus superspecies) using complete mitogenomic sequences.
2011,
Pubmed Wielstra,
A multimarker phylogeography of crested newts (Triturus cristatus superspecies) reveals cryptic species.
2013,
Pubmed Wielstra,
A revised taxonomy of crested newts in the Triturus karelinii group (Amphibia: Caudata: Salamandridae), with the description of a new species.
2013,
Pubmed You,
BatchPrimer3: a high throughput web application for PCR and sequencing primer design.
2008,
Pubmed Zieliński,
Development, validation and high-throughput analysis of sequence markers in nonmodel species.
2014,
Pubmed
