The 3' untranslated region of mRNA encoding PHAX, a phosphoprotein required for nuclear export of U-type snRNAs, contains cis-acting sequence motifs E2 and VM1 that are required for localization of RNAs to the vegetal hemisphere of Xenopus oocytes. However, we have found that PHAX mRNA is transported to the opposite, animal, hemisphere. A set of proteins that cross-link to the localization elements of vegetally localized RNAs are also cross-linked to PHAX and An1 mRNAs, demonstrating that the composition of RNP complexes that form on these localization elements is highly conserved irrespective of the final destination of the RNA. The ability of RNAs to bind this core group of proteins is correlated with localization activity. Staufen1, which binds to Vg1 and VegT mRNAs, is not associated with RNAs localized to the animal hemisphere and may determine, at least in part, the direction of RNA movement in Xenopus oocytes.

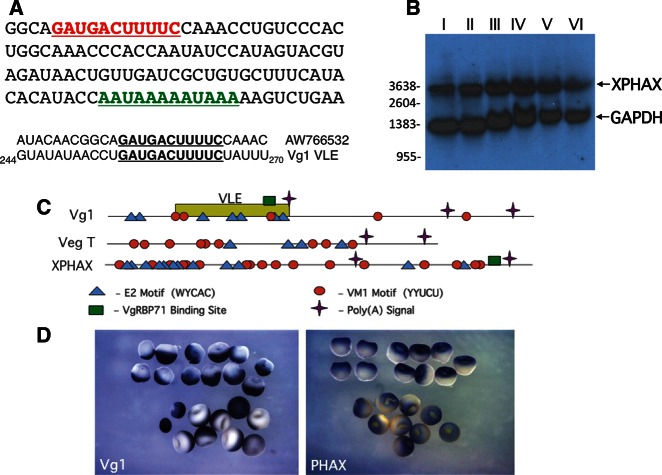

FIGURE 1. PHAX mRNA is localized to the animal hemisphere of Xenopus oocytes. (A) A portion of the Xenopus EST AW766532 is shown, highlighting the binding site for VgRBP71 (red) and a downstream polyadenylation signal (green). The sequence at the binding site for VgRBP71 (bold, underlined) in the EST is compared with that in Vg1 mRNA. (B) Oocytes were separated according to developmental stage (I–VI) and total RNA isolated for Northern blot analysis. Each lane contains 10 oocyte equivalents of RNA. Complementary probes for PHAX and GAPDH (loading control) mRNAs were used simultaneously. The positions of size standards (nucleotides, nt) are indicated. (C) Scheme showing the relative positions of E2 and VM1 motifs, VgRBP71 binding sites, and polyadenylation signals in the 3′ UTRs of Vg1, VegT, and PHAX mRNAs. (D) Immunohistochemical staining of stage V/VI oocytes following in situ hybridization with digoxigenin-labeled probes for Vg1 mRNA (left panel) and PHAX mRNA (right panel). The discernible indentation on the oocyte surface acts as a marker for the animal hemisphere.

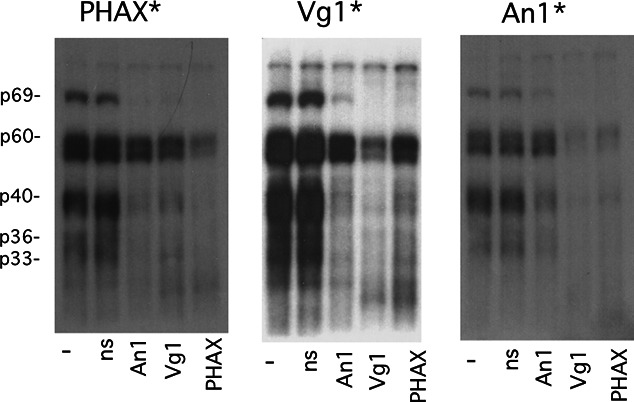

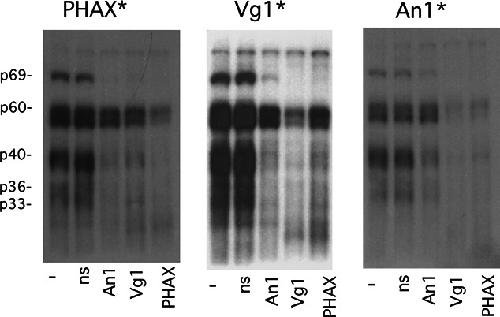

FIGURE 2. RNAs localized to either the vegetal or animal hemispheres are cross-linked to the same set of proteins. Internally radiolabeled PHAX (left), Vg1 (center), or An1 (right) RNA was added to whole-cell extract prepared from mixed-stage oocytes. Following UV irradiation, samples were treated with ribonuclease and then analyzed by SDS electrophoresis followed by autoradiography. A 20-fold excess of unlabeled, competitor RNA was added to individual samples, as indicated below each lane. Nonspecific RNA (ns) is a 356-nt transcript from the vector pBluescript KS.

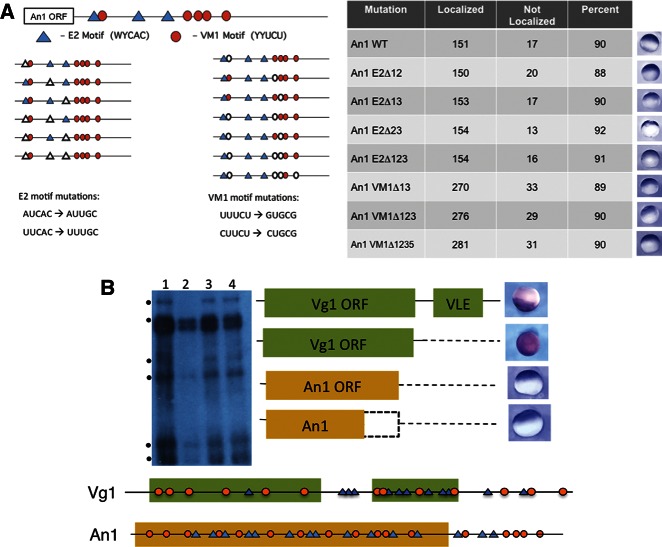

FIGURE 3. Functional localization signals extend throughout the length of An1 mRNA. (A) Scheme showing the location of E2 and VM1 motifs in the An1 3′ UTR targeted for mutagenesis (left). Empty symbols represent sites of mutation. Localization phenotypes of injected RNAs (right). Following immunohistochemical staining of oocytes injected with DIG-labeled RNA, each was visually judged for localization. Representative oocytes injected with each RNA are shown along the side of the table oriented with the animal hemisphere upward. (B) UV cross-linking and localization assays of Vg1 and An1 mRNAs. Full-length Vg1 mRNA (lane 1) is cross-linked to the six core group of proteins. Deletion of the Vg1 3′ UTR, which removes the VLE, eliminates cross-linking of the binding proteins (lane 2) and abolishes localization of the RNA. Deletion of the An1 3′ UTR (lane 3) or the 3′ UTR and the last 850 nt of the ORF (lane 4) do not eliminate cross-linking activity or localization of these mutant RNAs.

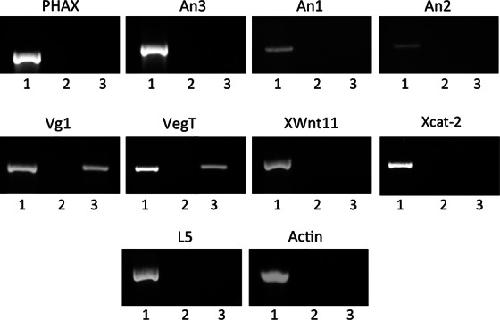

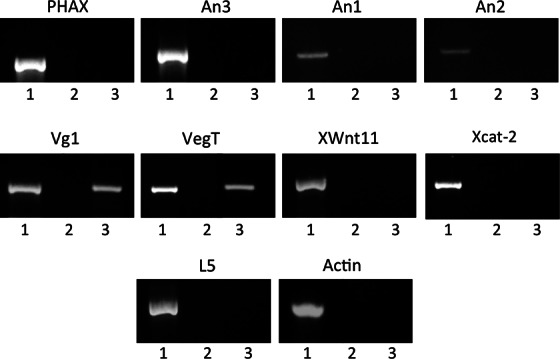

FIGURE 4. Staufen1 is associated only with RNA localized to the vegetal hemisphere. Staufen1 was immunoprecipitated from whole-cell extract prepared from stage III/IV oocytes. The associated RNA was reverse-transcribed into cDNA and amplified by PCR using gene-specific primers (indicated above each panel). (Lanes 1) PCR standards generated using total oocyte RNA as a template; (lanes 2) control precipitation with protein A-Sepharose beads in the absence of antibody; (lanes 3) precipitation from extract incubated with Staufen1 antibody. Ribosomal protein L5 and actin are not localized mRNAs and serve as negative controls.
Allison,
Two distinct Staufen isoforms in Xenopus are vegetally localized during oogenesis.
2004, Pubmed,
Xenbase
Allison,
Two distinct Staufen isoforms in Xenopus are vegetally localized during oogenesis.
2004,
Pubmed
,
Xenbase Arthur,
Participation of Xenopus Elr-type proteins in vegetal mRNA localization during oogenesis.
2009,
Pubmed
,
Xenbase Betley,
A ubiquitous and conserved signal for RNA localization in chordates.
2002,
Pubmed
,
Xenbase Boulon,
PHAX and CRM1 are required sequentially to transport U3 snoRNA to nucleoli.
2004,
Pubmed Bubunenko,
A consensus RNA signal that directs germ layer determinants to the vegetal cortex of Xenopus oocytes.
2002,
Pubmed
,
Xenbase Chan,
fatvg encodes a new localized RNA that uses a 25-nucleotide element (FVLE1) to localize to the vegetal cortex of Xenopus oocytes.
1999,
Pubmed
,
Xenbase Chang,
Localization of RNAs to the mitochondrial cloud in Xenopus oocytes through entrapment and association with endoplasmic reticulum.
2004,
Pubmed
,
Xenbase Chartrand,
Structural elements required for the localization of ASH1 mRNA and of a green fluorescent protein reporter particle in vivo.
1999,
Pubmed Choo,
Evidence for common machinery utilized by the early and late RNA localization pathways in Xenopus oocytes.
2005,
Pubmed
,
Xenbase Claussen,
Xvelo1 uses a novel 75-nucleotide signal sequence that drives vegetal localization along the late pathway in Xenopus oocytes.
2004,
Pubmed
,
Xenbase Claussen,
Evidence for overlapping, but not identical, protein machineries operating in vegetal RNA localization along early and late pathways in Xenopus oocytes.
2004,
Pubmed
,
Xenbase Cote,
A Xenopus protein related to hnRNP I has a role in cytoplasmic RNA localization.
1999,
Pubmed
,
Xenbase Czaplinski,
Identification of 40LoVe, a Xenopus hnRNP D family protein involved in localizing a TGF-beta-related mRNA during oogenesis.
2005,
Pubmed
,
Xenbase Deshler,
A highly conserved RNA-binding protein for cytoplasmic mRNA localization in vertebrates.
1998,
Pubmed
,
Xenbase Gonzalez,
ASH1 mRNA localization in yeast involves multiple secondary structural elements and Ash1 protein translation.
1999,
Pubmed Gu,
A predominantly nuclear protein affecting cytoplasmic localization of beta-actin mRNA in fibroblasts and neurons.
2002,
Pubmed Havin,
RNA-binding protein conserved in both microtubule- and microfilament-based RNA localization.
1998,
Pubmed
,
Xenbase Holt,
Subcellular mRNA localization in animal cells and why it matters.
2009,
Pubmed Horvay,
Xenopus Dead end mRNA is a localized maternal determinant that serves a conserved function in germ cell development.
2006,
Pubmed
,
Xenbase Huber,
Detection of protein-RNA complexes in Xenopus oocytes.
2010,
Pubmed
,
Xenbase Kolev,
VgRBP71 stimulates cleavage at a polyadenylation signal in Vg1 mRNA, resulting in the removal of a cis-acting element that represses translation.
2003,
Pubmed
,
Xenbase Kroll,
A homolog of FBP2/KSRP binds to localized mRNAs in Xenopus oocytes.
2002,
Pubmed
,
Xenbase Kroll,
Interactions of 40LoVe within the ribonucleoprotein complex that forms on the localization element of Xenopus Vg1 mRNA.
2009,
Pubmed
,
Xenbase Kwon,
UUCAC- and vera-dependent localization of VegT RNA in Xenopus oocytes.
2002,
Pubmed
,
Xenbase Lécuyer,
Global analysis of mRNA localization reveals a prominent role in organizing cellular architecture and function.
2007,
Pubmed Lécuyer,
Global implications of mRNA localization pathways in cellular organization.
2009,
Pubmed Lewis,
PTB/hnRNP I is required for RNP remodeling during RNA localization in Xenopus oocytes.
2008,
Pubmed
,
Xenbase Loeber,
Interaction of 42Sp50 with the vegetal RNA localization machinery in Xenopus laevis oocytes.
2010,
Pubmed
,
Xenbase Marchand,
An intracellular transmission control protocol: assembly and transport of ribonucleoprotein complexes.
2012,
Pubmed Martin,
mRNA localization: gene expression in the spatial dimension.
2009,
Pubmed Messitt,
Multiple kinesin motors coordinate cytoplasmic RNA transport on a subpopulation of microtubules in Xenopus oocytes.
2008,
Pubmed
,
Xenbase Mowry,
Vegetal messenger RNA localization directed by a 340-nt RNA sequence element in Xenopus oocytes.
1992,
Pubmed
,
Xenbase Mowry,
Complex formation between stage-specific oocyte factors and a Xenopus mRNA localization element.
1996,
Pubmed
,
Xenbase Ohno,
PHAX, a mediator of U snRNA nuclear export whose activity is regulated by phosphorylation.
2000,
Pubmed
,
Xenbase Rehbein,
Molecular characterization of MARTA1, a protein interacting with the dendritic targeting element of MAP2 mRNAs.
2002,
Pubmed Roegiers,
Staufen: a common component of mRNA transport in oocytes and neurons?
2000,
Pubmed Snee,
RNA trafficking and stabilization elements associate with multiple brain proteins.
2002,
Pubmed St Johnston,
Staufen, a gene required to localize maternal RNAs in the Drosophila egg.
1991,
Pubmed Watkins,
Assembly and maturation of the U3 snoRNP in the nucleoplasm in a large dynamic multiprotein complex.
2004,
Pubmed Yoon,
Xenopus Staufen is a component of a ribonucleoprotein complex containing Vg1 RNA and kinesin.
2004,
Pubmed
,
Xenbase Zhao,
A proline-rich protein binds to the localization element of Xenopus Vg1 mRNA and to ligands involved in actin polymerization.
2001,
Pubmed
,
Xenbase Zimyanin,
In vivo imaging of oskar mRNA transport reveals the mechanism of posterior localization.
2008,
Pubmed
