XB-ART-42897
Proc Natl Acad Sci U S A
2011 Mar 15;10811:4334-9. doi: 10.1073/pnas.1017150108.
Show Gene links
Show Anatomy links
Active liquid-like behavior of nucleoli determines their size and shape in Xenopus laevis oocytes.
???displayArticle.abstract???
???displayArticle.pubmedLink??? 21368180
???displayArticle.pmcLink??? PMC3060270
???displayArticle.link??? Proc Natl Acad Sci U S A
???displayArticle.grants??? [+]
Species referenced: Xenopus laevis
Genes referenced: actl6a fubp1 npm1 sycp2l
???attribute.lit??? ???displayArticles.show???
|
|
|

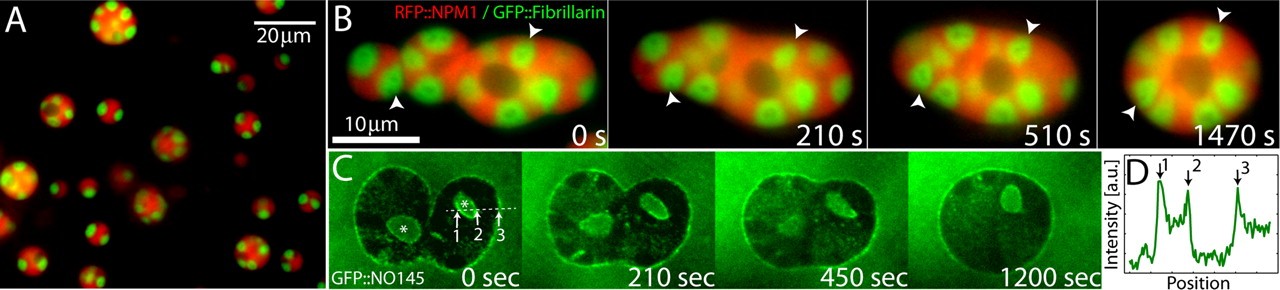

Fig. 5. Dynamics of nucleolar substructures. (A) A GV exhibiting GFP∷fibrillarin/RFP∷NPM1�labeled nucleoli. Note that larger nucleoli contain many fibrillarin cores, whereas smaller nucleoli contain only one or two fibrillarin cores. (B) Image sequence showing fusion of several GFP∷fibrillarin/RFP∷NPM1-labeled nucleoli. Arrowheads track the positions of two fibrillar cores. (C) Image sequence showing the dynamics of GFP∷NO145 at the cortex of two fusing nucleoli. Note the GFP∷NO145 localization to the interior of nucleoli at the surface of nucleolar vacuole-like structures (*). (D) Intensity profile across the dotted line shown in C; peaks 1 and 2 reflect vacuolar surface, and peak 3 reflects nucleolar cortex. |
|

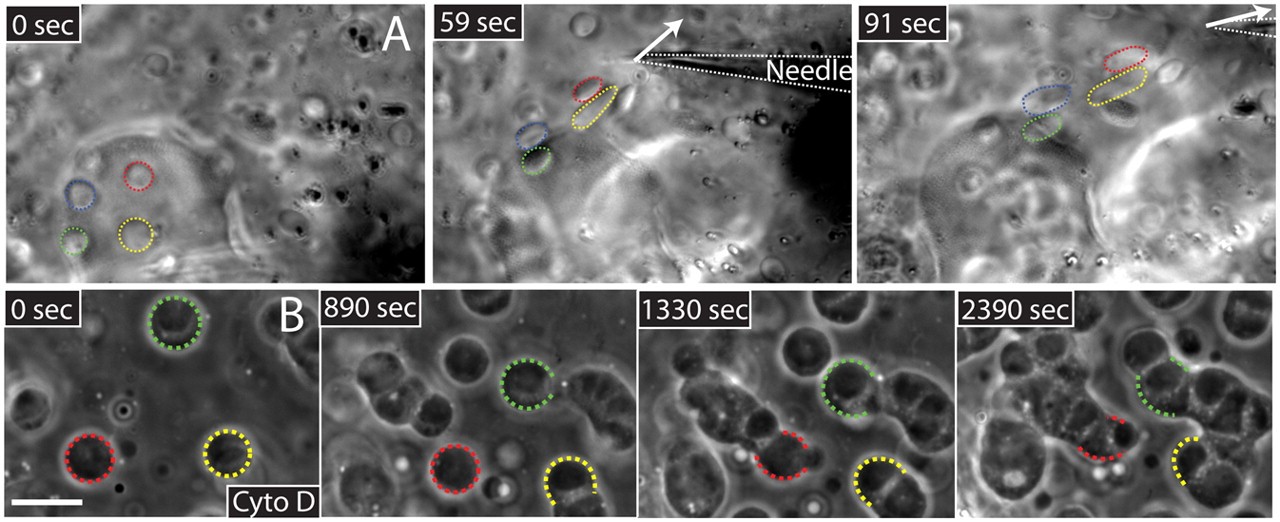

Fig. 6. The role of a surrounding actin scaffold in slowing internucleolar contact. (A) Pulling on one region of the GV with a microneedle displaces nucleoli in distal regions, suggesting the presence of an elastic scaffold. Four nucleoli are highlighted. (B) GV treated with Cyto-D to disrupt filamentous actin. Nucleoli freely diffuse throughout the GV and fuse with one another upon contact; the fates of three nucleoli are highlighted. One large nucleolar clump results; note, however, that under these drug conditions nucleoli do not appear to regain sphericity and fusion appears perturbed. |
References [+] :
Aarts,
Direct visual observation of thermal capillary waves.
2004, Pubmed
Aarts, Direct visual observation of thermal capillary waves. 2004, Pubmed
AMENTA, Fusion of nucleoli in cells cultured from the heart of Triturus viridescens. 1961, Pubmed
Anastassova-Kristeva, The nucleolar cycle in man. 1977, Pubmed
Andersen, Nucleolar proteome dynamics. 2005, Pubmed
Bataillé, Cytoplasmic transport of ribosomal subunits microinjected into the Xenopus laevis oocyte nucleus: a generalized, facilitated process. 1990, Pubmed , Xenbase
Bohnsack, A selective block of nuclear actin export stabilizes the giant nuclei of Xenopus oocytes. 2006, Pubmed , Xenbase
Boisvert, The multifunctional nucleolus. 2007, Pubmed
Brangwynne, Germline P granules are liquid droplets that localize by controlled dissolution/condensation. 2009, Pubmed
Brown, Specific gene amplification in oocytes. Oocyte nuclei contain extrachromosomal replicas of the genes for ribosomal RNA. 1968, Pubmed
Derenzini, Nucleolar size indicates the rapidity of cell proliferation in cancer tissues. 2000, Pubmed
Dumont, Oogenesis in Xenopus laevis (Daudin). I. Stages of oocyte development in laboratory maintained animals. 1972, Pubmed , Xenbase
Gall, Differential synthesis of the genes for ribosomal RNA during amphibian oögenesis. 1968, Pubmed
Gall, Structure in the amphibian germinal vesicle. 2004, Pubmed , Xenbase
Gall, Cajal bodies: the first 100 years. 2000, Pubmed
Gounon, Involvement of contractile proteins in the changes in consistency of oocyte nucleoplasm of the newt Pleurodeles waltlii. 1981, Pubmed
Handwerger, Cajal bodies, nucleoli, and speckles in the Xenopus oocyte nucleus have a low-density, sponge-like structure. 2005, Pubmed , Xenbase
Helpap, Observations on the number, size and localization of nucleoli in hyperplastic and neoplastic prostatic disease. 1988, Pubmed
Kneissel, A novel karyoskeletal protein: characterization of protein NO145, the major component of nucleolar cortical skeleton in Xenopus oocytes. 2001, Pubmed , Xenbase
Lane, Spheroidal and ring nucleoli in amphibian oocytes. Patterns of uridine incorporation and fine structural features. 1967, Pubmed
Malatesta, Nucleoli undergo structural and molecular modifications during hibernation. 2000, Pubmed
Maniotis, Demonstration of mechanical connections between integrins, cytoskeletal filaments, and nucleoplasm that stabilize nuclear structure. 1997, Pubmed
Mathis, Imaging beta-amyloid plaques and neurofibrillary tangles in the aging human brain. 2004, Pubmed
Olson, The moving parts of the nucleolus. 2005, Pubmed
Paine, The oocyte nucleus isolated in oil retains in vivo structure and functions. 1992, Pubmed , Xenbase
Peculis, Localization of the nucleolar protein NO38 in amphibian oocytes. 1992, Pubmed , Xenbase
Savas, Huntington's disease protein contributes to RNA-mediated gene silencing through association with Argonaute and P bodies. 2008, Pubmed
Shav-Tal, Dynamic sorting of nuclear components into distinct nucleolar caps during transcriptional inhibition. 2005, Pubmed
Sheth, Decapping and decay of messenger RNA occur in cytoplasmic processing bodies. 2003, Pubmed
Souquere, Unravelling the ultrastructure of stress granules and associated P-bodies in human cells. 2009, Pubmed
Spector, Nuclear domains. 2001, Pubmed
Strome, Germ versus soma decisions: lessons from flies and worms. 2007, Pubmed
Takayasu, Power-law mass distribution of aggregation systems with injection. 1988, Pubmed
Weitz, Dynamic scaling of cluster-mass distributions in kinetic colloid aggregation. 1986, Pubmed
Wu, "Micronucleoli" in the Xenopus germinal vesicle. 1997, Pubmed , Xenbase
