???displayArticle.abstract???
More than a decade has passed since Zic family zinc finger proteins were discovered to be transcription factors controlling neuroectodermal differentiation (neural induction) in Xenopus laevis embryos. Although BMP-signal blocking has been shown to be a major upregulator of Zic genes in neuroectodermal differentiation, recent studies have revealed that FGF signaling and intracellular calcium elevation are also involved in regulating the expression of Zic genes. Different regulatory mechanisms have been found for the Zic1 and Zic3 genes, raising the possibility that functional synergism between them partly accounts for the integration of BMP-signal blocking and FGF signaling in neuroectodermal differentiation. Furthermore, mammalian Zic1 and Zic3 have been found to be neural-cell-fate-inducing and pluripotency-maintaining factors, respectively, leading us to the intriguing question of whether the mechanism underlying amphibian neuroectodermal differentiation is applicable to mammals. Comprehensive understanding of the Zic family genes is therefore essential for the study of the neuroectodermal differentiation and stem cell biology.

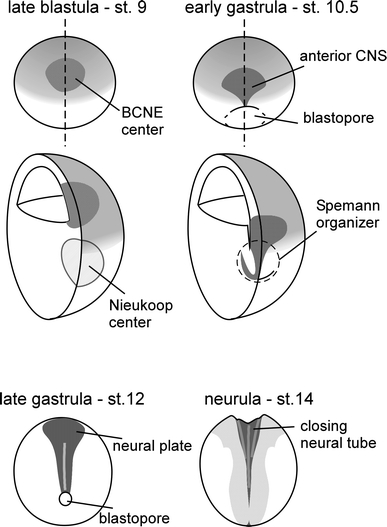

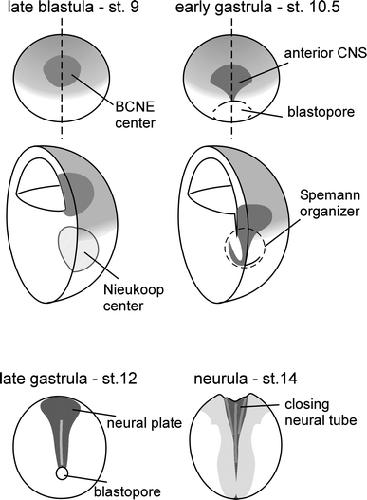

Fig. 1. Gastrulation and NED in Xenopus embryos. Dorsal views of Xenopus embryos at late blastula stage (St. 9), early gastrula stage (St. 10.5), late gastrula (St. 12), and neurula (St. 14). The position of NE, blastopore, Spemann’s organizer, BCNE, and Nieuwkoop center are shown in the right hemisections of the late blastula and early gastrula stage embryos. The dorsal views and staging are based on [59], and the hemisection diagrams are based on [3]

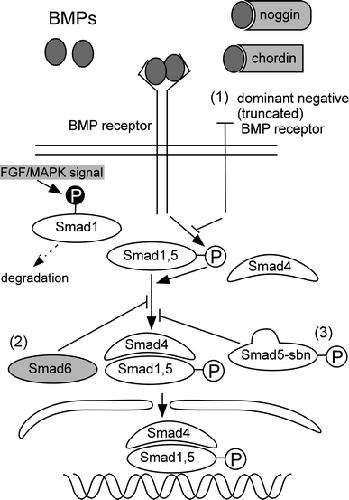

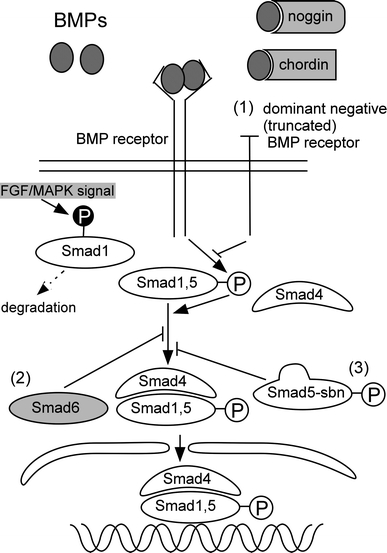

Fig. 2. BMP signaling and its blocking. In the course of gastrulation, natural BMP-signal blocking occurs in BCNE through the physical interaction between BMP2/BMP4 and noggin/chordin. Three ways of experimentally blocking BMP signal in Xenopus embryos are shown: (1) dominant-negative type BMP receptor; (2) Smad6 (inhibitory Smad); and (3) Smad5-sbn (somitabun), which is thought to be deficient in binding to Smad4 and to form an inactive heteromeric complex with intact Smad5 and Smad1, resulting in efficient inhibition of the BMP signaling pathway. Phosphorylation of Smad1 by FGF/MAPK signaling (P on black background) occurs at a different amino acid position from that of BMP receptor-mediated phosphorylation (P on white background), and inhibits the transcriptional activity of Smad1. Natural inhibitory factors for BMP signaling are highlighted with gray

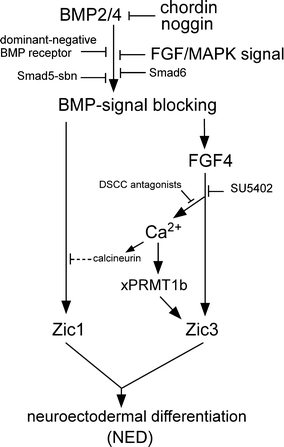

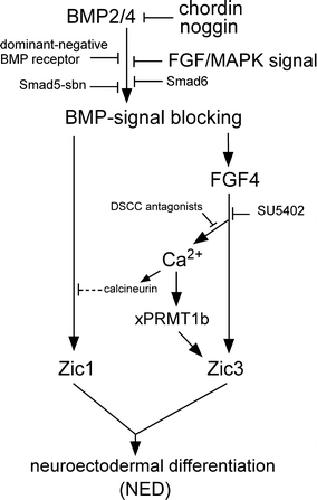

Fig. 3. NED signaling pathways and Zic1/3 genes. BMP-signal blocking, FGF, and calcium signaling regulate the expression of the NED-enhancing transcription factors Zic1 and Zic3
Aruga,
A wide-range phylogenetic analysis of Zic proteins: implications for correlations between protein structure conservation and body plan complexity.
2006, Pubmed
Aruga,
A wide-range phylogenetic analysis of Zic proteins: implications for correlations between protein structure conservation and body plan complexity.
2006,
Pubmed Aruga,
Expression of ZIC family genes in meningiomas and other brain tumors.
2010,
Pubmed Aruga,
The role of Zic genes in neural development.
2004,
Pubmed Aruga,
Dicyema Pax6 and Zic: tool-kit genes in a highly simplified bilaterian.
2007,
Pubmed Batut,
The Ca2+-induced methyltransferase xPRMT1b controls neural fate in amphibian embryo.
2005,
Pubmed
,
Xenbase Brown,
Zic2 is expressed in pluripotent cells in the blastocyst and adult brain expression overlaps with makers of neurogenesis.
2009,
Pubmed
,
Xenbase Delaune,
Neural induction in Xenopus requires early FGF signalling in addition to BMP inhibition.
2005,
Pubmed
,
Xenbase De Robertis,
Dorsal-ventral patterning and neural induction in Xenopus embryos.
2004,
Pubmed
,
Xenbase Elms,
Overlapping and distinct expression domains of Zic2 and Zic3 during mouse gastrulation.
2004,
Pubmed Fujimi,
Xenopus Zic4: conservation and diversification of expression profiles and protein function among the Xenopus Zic family.
2006,
Pubmed
,
Xenbase Grinberg,
The ZIC gene family in development and disease.
2005,
Pubmed Grinblat,
zic Gene expression marks anteroposterior pattern in the presumptive neurectoderm of the zebrafish gastrula.
2001,
Pubmed Hatayama,
Functional and structural basis of the nuclear localization signal in the ZIC3 zinc finger domain.
2008,
Pubmed Hemmati-Brivanlou,
Vertebrate neural induction.
1997,
Pubmed
,
Xenbase Inoue,
Zic1 and Zic3 regulate medial forebrain development through expansion of neuronal progenitors.
2007,
Pubmed Inoue,
Zic2 and Zic3 synergistically control neurulation and segmentation of paraxial mesoderm in mouse embryo.
2007,
Pubmed Kawabata,
Signal transduction by bone morphogenetic proteins.
1998,
Pubmed Kawano,
Secreted antagonists of the Wnt signalling pathway.
2003,
Pubmed
,
Xenbase Kengaku,
bFGF as a possible morphogen for the anteroposterior axis of the central nervous system in Xenopus.
1995,
Pubmed
,
Xenbase Kuo,
Opl: a zinc finger protein that regulates neural determination and patterning in Xenopus.
1998,
Pubmed
,
Xenbase Kuroda,
Neural induction in Xenopus: requirement for ectodermal and endomesodermal signals via Chordin, Noggin, beta-Catenin, and Cerberus.
2004,
Pubmed
,
Xenbase Lamb,
Fibroblast growth factor is a direct neural inducer, which combined with noggin generates anterior-posterior neural pattern.
1995,
Pubmed
,
Xenbase Launay,
A truncated FGF receptor blocks neural induction by endogenous Xenopus inducers.
1996,
Pubmed
,
Xenbase Leclerc,
Calcium transients triggered by planar signals induce the expression of ZIC3 gene during neural induction in Xenopus.
2003,
Pubmed
,
Xenbase Leclerc,
Imaging patterns of calcium transients during neural induction in Xenopus laevis embryos.
2000,
Pubmed
,
Xenbase Leclerc,
Calcium transients and calcium signalling during early neurogenesis in the amphibian embryo Xenopus laevis.
2006,
Pubmed
,
Xenbase Lee,
FGF-activated calcium channels control neural gene expression in Xenopus.
2009,
Pubmed
,
Xenbase Lee,
Transcriptional regulation of Zic3 by heterodimeric AP-1(c-Jun/c-Fos) during Xenopus development.
2004,
Pubmed
,
Xenbase Lim,
Zic3 is required for maintenance of pluripotency in embryonic stem cells.
2007,
Pubmed Lim,
The pluripotency regulator Zic3 is a direct activator of the Nanog promoter in ESCs.
2010,
Pubmed Linker,
Neural induction requires BMP inhibition only as a late step, and involves signals other than FGF and Wnt antagonists.
2004,
Pubmed
,
Xenbase Londin,
Chordin, FGF signaling, and mesodermal factors cooperate in zebrafish neural induction.
2005,
Pubmed Marchal,
BMP inhibition initiates neural induction via FGF signaling and Zic genes.
2009,
Pubmed
,
Xenbase Merzdorf,
Emerging roles for zic genes in early development.
2007,
Pubmed
,
Xenbase Mizugishi,
Molecular properties of Zic proteins as transcriptional regulators and their relationship to GLI proteins.
2001,
Pubmed
,
Xenbase Mizuseki,
Xenopus Zic-related-1 and Sox-2, two factors induced by chordin, have distinct activities in the initiation of neural induction.
1998,
Pubmed
,
Xenbase Mizuseki,
SoxD: an essential mediator of induction of anterior neural tissues in Xenopus embryos.
1998,
Pubmed
,
Xenbase Moreau,
Calcium signalling during neural induction in Xenopus laevis embryos.
2008,
Pubmed
,
Xenbase Moreau,
Increased internal Ca2+ mediates neural induction in the amphibian embryo.
1994,
Pubmed Nagai,
The expression of the mouse Zic1, Zic2, and Zic3 gene suggests an essential role for Zic genes in body pattern formation.
1997,
Pubmed Nakata,
Xenopus Zic family and its role in neural and neural crest development.
1998,
Pubmed
,
Xenbase Nakata,
Xenopus Zic3, a primary regulator both in neural and neural crest development.
1997,
Pubmed
,
Xenbase Palma,
Calcium mediates dorsoventral patterning of mesoderm in Xenopus.
2001,
Pubmed
,
Xenbase Pera,
Integration of IGF, FGF, and anti-BMP signals via Smad1 phosphorylation in neural induction.
2003,
Pubmed
,
Xenbase Rentzsch,
Fgf signaling induces posterior neuroectoderm independently of Bmp signaling inhibition.
2004,
Pubmed Sasai,
Endoderm induction by the organizer-secreted factors chordin and noggin in Xenopus animal caps.
1996,
Pubmed
,
Xenbase Sasai,
Identifying the missing links: genes that connect neural induction and primary neurogenesis in vertebrate embryos.
1998,
Pubmed Sharov,
Identification of Pou5f1, Sox2, and Nanog downstream target genes with statistical confidence by applying a novel algorithm to time course microarray and genome-wide chromatin immunoprecipitation data.
2008,
Pubmed Stern,
Neural induction: 10 years on since the 'default model'.
2006,
Pubmed Stern,
Neural induction: old problem, new findings, yet more questions.
2005,
Pubmed
,
Xenbase Takahashi,
Expression pattern of annelid Zic in embryonic development of the oligochaete Tubifex tubifex.
2008,
Pubmed Tropepe,
Direct neural fate specification from embryonic stem cells: a primitive mammalian neural stem cell stage acquired through a default mechanism.
2001,
Pubmed Tropepe,
Identification of a BMP inhibitor-responsive promoter module required for expression of the early neural gene zic1.
2006,
Pubmed
,
Xenbase Vierbuchen,
Direct conversion of fibroblasts to functional neurons by defined factors.
2010,
Pubmed Xu,
Studies on the role of fibroblast growth factor signaling in neurogenesis using conjugated/aged animal caps and dorsal ectoderm-grafted embryos.
1997,
Pubmed
,
Xenbase Yamada,
Electrical stimulation modulates fate determination of differentiating embryonic stem cells.
2007,
Pubmed Ying,
Conversion of embryonic stem cells into neuroectodermal precursors in adherent monoculture.
2003,
Pubmed
