???displayArticle.abstract???
Development is controlled by a complex series of events requiring sequential gene activation. Understanding the logic of gene networks during development is necessary for a complete understanding of how genes contribute to phenotype. Pioneering work initiated in the sea urchin and Drosophila has demonstrated that reasonable transcriptional regulatory network diagrams representing early development in multicellular animals can be generated through use of appropriate genomic, genetic, and biochemical tools. Establishment of similar regulatory network diagrams for vertebrate development is a necessary step. The amphibian Xenopus has long been used as a model for vertebrate early development and has contributed greatly to the elucidation of gene regulation. Because the best and most extensively studied transcriptional regulatory network in Xenopus is that underlying the formation and function of Spemann's organizer, we describe the current status of our understanding of this gene regulatory network and its relationship to mesodermal patterning. Seventy-four transcription factors currently known to be expressed in the mesoendoderm of Xenopus gastrula were characterized according to their modes of action, DNA binding consensus sequences, and target genes. Among them, nineteen transcription factors were characterized sufficiently in detail, allowing us to generate a gene regulatory network diagram. Additionally, we discuss recent amphibian work using a combined DNA microarray and bioinformatics approach that promises to accelerate regulatory network studies.

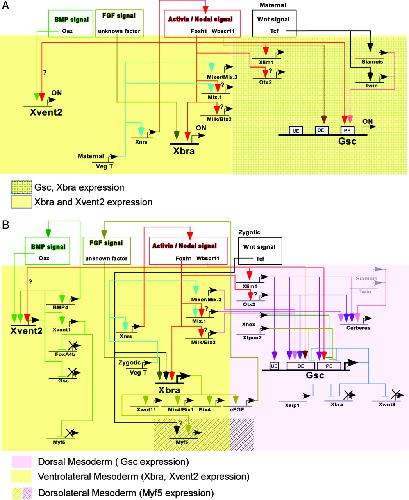

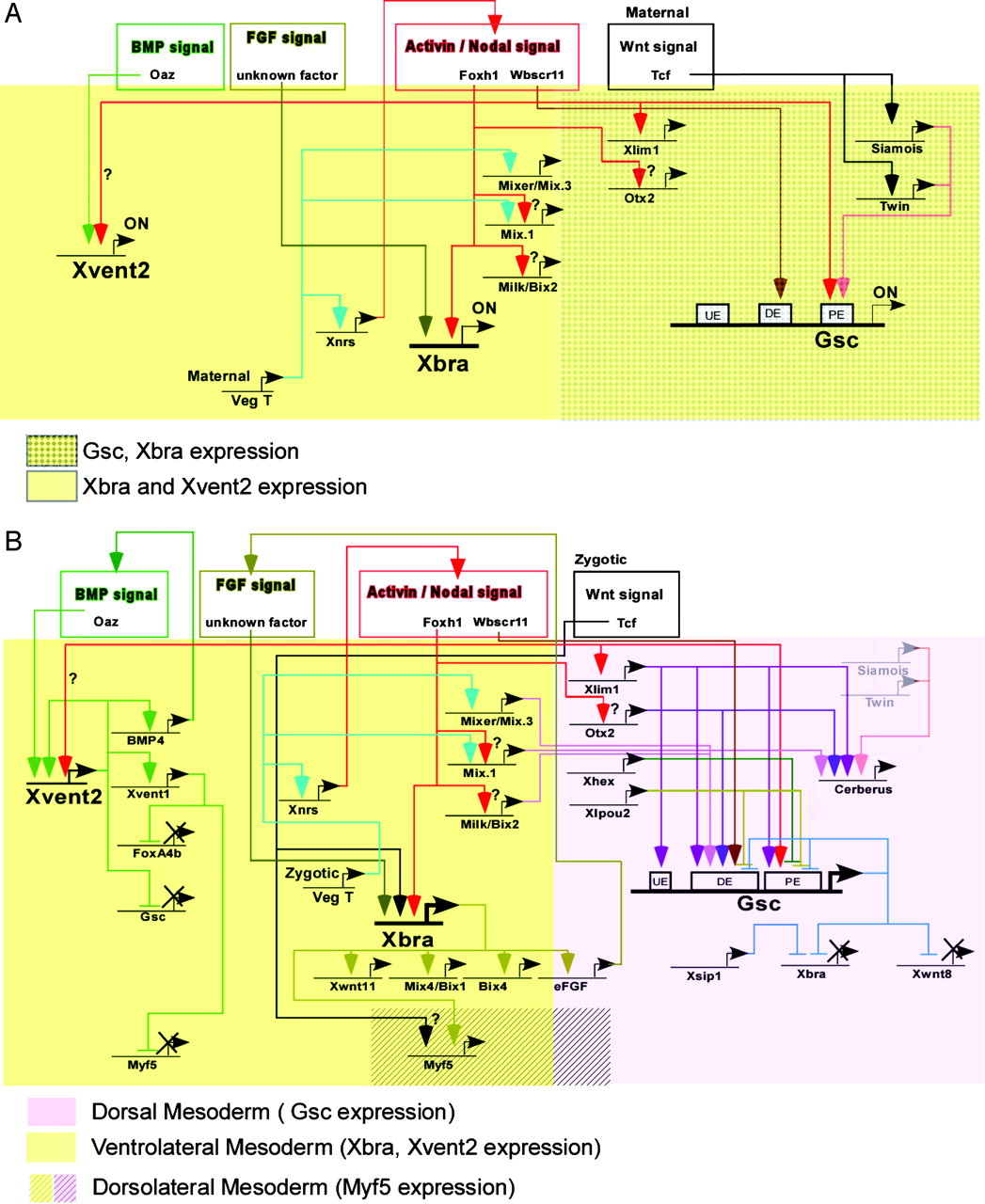

Fig. 1. GRNs in the Xenopus mesoderm specification. (A) Marginal region of pregastrula stage embryo. The yellow area with mesh indicates the dorsal mesoderm, and the yellow area indicates the ventral marginal zone. The colored arrows and barreled lines indicate direct activation and repression of the target gene. All suspected indirect relationships have been excluded from the diagram. Transcription factors mediating growth factor signaling are indicated in boxes. Note that, in the dorsal mesoderm, Gsc and Xbra are coexpressed. (B) Marginal region of early-late gastrula stage embryo. During this period, the mesoderm is subdivided to become the dorsal (pink area), dorsolateral (hatched area), and ventrolateral mesoderm (yellow). All necessary primary references that support the arrows (direct interaction) are listed in Table 1, under “direct target genes.†The question marks denote direct activin/nodal or Wnt target genes. However, the transcription factors responsible for the induction are unknown.

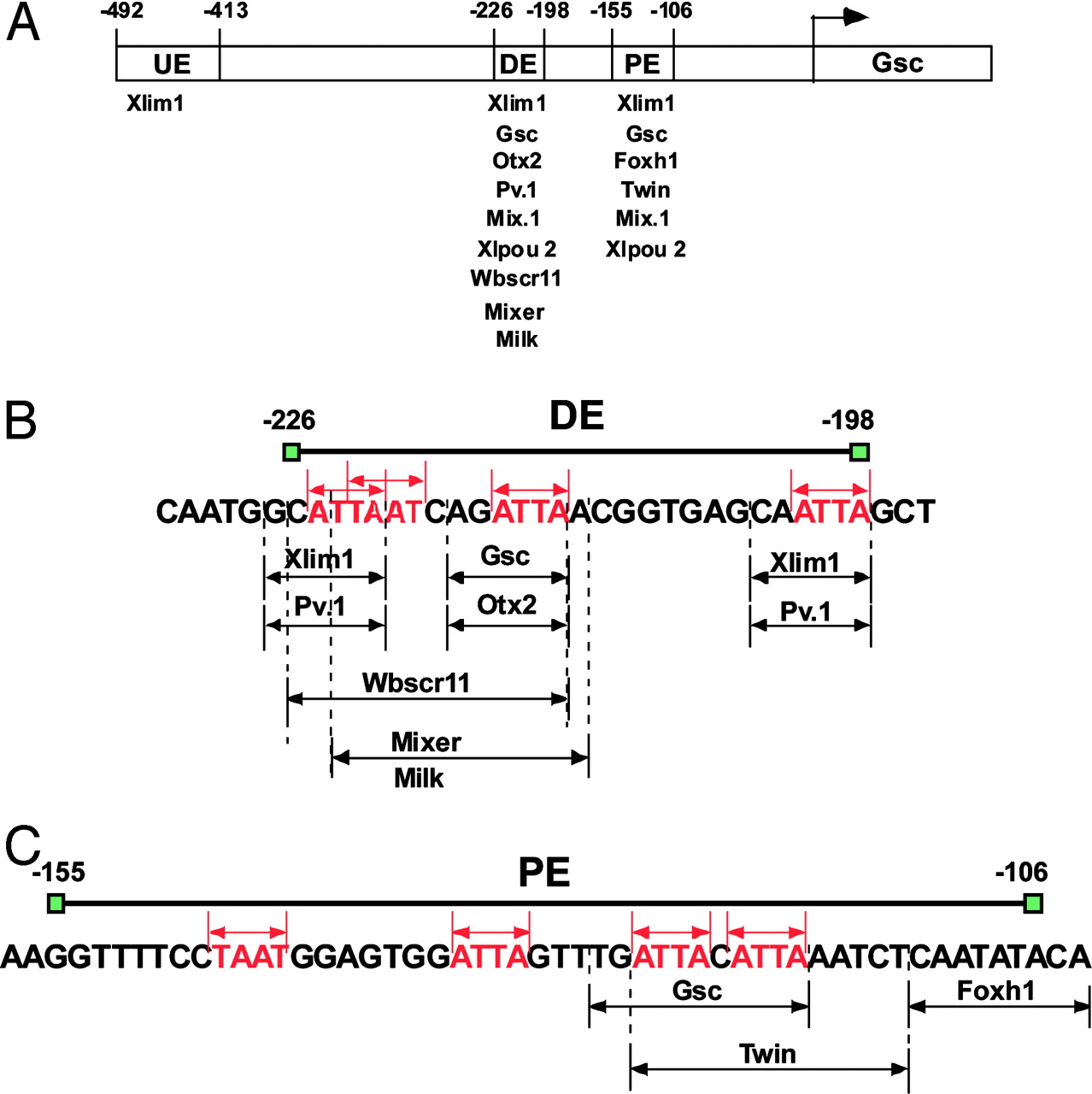

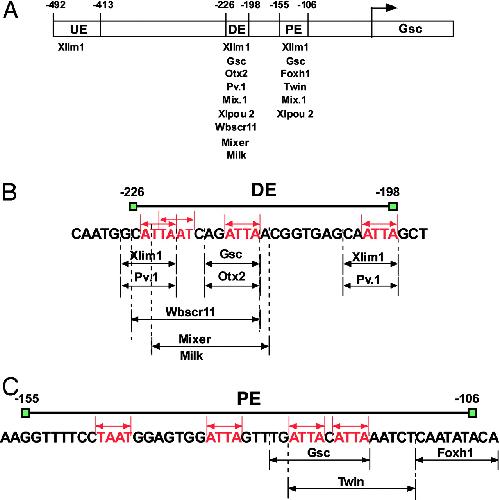

Fig. 2. Structure and function of Gsc promoter. (A) A schematic diagram representing three elements within the 492-bp Gsc promoter. UE, upstream elements. Transcription factors known to bind to each of the element are indicated. (B and C). DE and PE sequences recognized by transcription factors. Homeobox binding sequences, ATTA and TAAT, are indicated in red with arrows. The black arrows indicate the region where each transcriptional factor is currently known to bind.
Artinger,
Interaction of goosecoid and brachyury in Xenopus mesoderm patterning.
1997, Pubmed,
Xenbase
Artinger,
Interaction of goosecoid and brachyury in Xenopus mesoderm patterning.
1997,
Pubmed
,
Xenbase Asashima,
Mesodermal induction in early amphibian embryos by activin A (erythroid differentiation factor).
1990,
Pubmed
,
Xenbase Blitz,
Anterior neurectoderm is progressively induced during gastrulation: the role of the Xenopus homeobox gene orthodenticle.
1995,
Pubmed
,
Xenbase Blum,
Gastrulation in the mouse: the role of the homeobox gene goosecoid.
1992,
Pubmed
,
Xenbase Blumberg,
Organizer-specific homeobox genes in Xenopus laevis embryos.
1991,
Pubmed
,
Xenbase Brickman,
Hex is a transcriptional repressor that contributes to anterior identity and suppresses Spemann organiser function.
2000,
Pubmed
,
Xenbase Casey,
Bix4 is activated directly by VegT and mediates endoderm formation in Xenopus development.
1999,
Pubmed
,
Xenbase Casey,
The T-box transcription factor Brachyury regulates expression of eFGF through binding to a non-palindromic response element.
1998,
Pubmed
,
Xenbase Cho,
Molecular nature of Spemann's organizer: the role of the Xenopus homeobox gene goosecoid.
1991,
Pubmed
,
Xenbase Clements,
VegT induces endoderm by a self-limiting mechanism and by changing the competence of cells to respond to TGF-beta signals.
2003,
Pubmed
,
Xenbase Conlon,
Determinants of T box protein specificity.
2001,
Pubmed
,
Xenbase Danilov,
Negative autoregulation of the organizer-specific homeobox gene goosecoid.
1998,
Pubmed
,
Xenbase Davidson,
Regulatory gene networks and the properties of the developmental process.
2003,
Pubmed Davidson,
A provisional regulatory gene network for specification of endomesoderm in the sea urchin embryo.
2002,
Pubmed Davidson,
A genomic regulatory network for development.
2002,
Pubmed Dirksen,
A novel, activin-inducible, blastopore lip-specific gene of Xenopus laevis contains a fork head DNA-binding domain.
1992,
Pubmed
,
Xenbase Gammill,
Identification of otx2 target genes and restrictions in ectodermal competence during Xenopus cement gland formation.
1997,
Pubmed
,
Xenbase Gawantka,
Antagonizing the Spemann organizer: role of the homeobox gene Xvent-1.
1995,
Pubmed
,
Xenbase Germain,
Homeodomain and winged-helix transcription factors recruit activated Smads to distinct promoter elements via a common Smad interaction motif.
2000,
Pubmed
,
Xenbase Hayata,
Overexpression of the secreted factor Mig30 expressed in the Spemann organizer impairs morphogenetic movements during Xenopus gastrulation.
2002,
Pubmed
,
Xenbase Hilton,
VegT activation of the early zygotic gene Xnr5 requires lifting of Tcf-mediated repression in the Xenopus blastula.
2003,
Pubmed
,
Xenbase Hopwood,
Xenopus Myf-5 marks early muscle cells and can activate muscle genes ectopically in early embryos.
1991,
Pubmed
,
Xenbase Hyde,
Regulation of the early expression of the Xenopus nodal-related 1 gene, Xnr1.
2000,
Pubmed
,
Xenbase Izpisúa-Belmonte,
The homeobox gene goosecoid and the origin of organizer cells in the early chick blastoderm.
1993,
Pubmed
,
Xenbase Jaynes,
Active repression of transcription by the engrailed homeodomain protein.
1991,
Pubmed Jegga,
Detection and visualization of compositionally similar cis-regulatory element clusters in orthologous and coordinately controlled genes.
2002,
Pubmed Karaulanov,
Transcriptional regulation of BMP4 synexpression in transgenic Xenopus.
2004,
Pubmed
,
Xenbase Kessler,
Siamois is required for formation of Spemann's organizer.
1997,
Pubmed
,
Xenbase Kimelman,
Synergistic induction of mesoderm by FGF and TGF-beta and the identification of an mRNA coding for FGF in the early Xenopus embryo.
1987,
Pubmed
,
Xenbase Kolm,
Efficient hormone-inducible protein function in Xenopus laevis.
1995,
Pubmed
,
Xenbase Kroll,
Transgenic Xenopus embryos from sperm nuclear transplantations reveal FGF signaling requirements during gastrulation.
1996,
Pubmed
,
Xenbase Latinkic,
Goosecoid and mix.1 repress Brachyury expression and are required for head formation in Xenopus.
1999,
Pubmed
,
Xenbase Latinkić,
The Xenopus Brachyury promoter is activated by FGF and low concentrations of activin and suppressed by high concentrations of activin and by paired-type homeodomain proteins.
1997,
Pubmed
,
Xenbase Laurent,
The Xenopus homeobox gene twin mediates Wnt induction of goosecoid in establishment of Spemann's organizer.
1997,
Pubmed
,
Xenbase Lemaire,
Expression cloning of Siamois, a Xenopus homeobox gene expressed in dorsal-vegetal cells of blastulae and able to induce a complete secondary axis.
1995,
Pubmed
,
Xenbase Li,
A global transcriptional regulatory role for c-Myc in Burkitt's lymphoma cells.
2003,
Pubmed Loose,
A genetic regulatory network for Xenopus mesendoderm formation.
2004,
Pubmed
,
Xenbase Loots,
rVista for comparative sequence-based discovery of functional transcription factor binding sites.
2002,
Pubmed Markstein,
Genome-wide analysis of clustered Dorsal binding sites identifies putative target genes in the Drosophila embryo.
2002,
Pubmed Markstein,
A regulatory code for neurogenic gene expression in the Drosophila embryo.
2004,
Pubmed Melton,
Translocation of a localized maternal mRNA to the vegetal pole of Xenopus oocytes.
,
Pubmed
,
Xenbase Nóbrega,
Megabase deletions of gene deserts result in viable mice.
2004,
Pubmed Odom,
Control of pancreas and liver gene expression by HNF transcription factors.
2004,
Pubmed Onichtchouk,
The Xvent-2 homeobox gene is part of the BMP-4 signalling pathway controlling [correction of controling] dorsoventral patterning of Xenopus mesoderm.
1996,
Pubmed
,
Xenbase Peiffer,
A Xenopus DNA microarray approach to identify novel direct BMP target genes involved in early embryonic development.
2005,
Pubmed
,
Xenbase Polli,
A study of mesoderm patterning through the analysis of the regulation of Xmyf-5 expression.
2002,
Pubmed
,
Xenbase Re'em-Kalma,
Competition between noggin and bone morphogenetic protein 4 activities may regulate dorsalization during Xenopus development.
1995,
Pubmed
,
Xenbase Ren,
E2F integrates cell cycle progression with DNA repair, replication, and G(2)/M checkpoints.
2002,
Pubmed Ring,
The role of a Williams-Beuren syndrome-associated helix-loop-helix domain-containing transcription factor in activin/nodal signaling.
2002,
Pubmed
,
Xenbase Ruiz i Altaba,
Pintallavis, a gene expressed in the organizer and midline cells of frog embryos: involvement in the development of the neural axis.
1992,
Pubmed
,
Xenbase Sadowski,
GAL4-VP16 is an unusually potent transcriptional activator.
1988,
Pubmed Saka,
A screen for targets of the Xenopus T-box gene Xbra.
2000,
Pubmed
,
Xenbase Shin,
Identification of neural genes using Xenopus DNA microarrays.
2005,
Pubmed
,
Xenbase Smith,
Expression of a Xenopus homolog of Brachyury (T) is an immediate-early response to mesoderm induction.
1991,
Pubmed
,
Xenbase Smith,
Identification of a potent Xenopus mesoderm-inducing factor as a homologue of activin A.
1990,
Pubmed
,
Xenbase Stachel,
Lithium perturbation and goosecoid expression identify a dorsal specification pathway in the pregastrula zebrafish.
1993,
Pubmed Tada,
Bix1, a direct target of Xenopus T-box genes, causes formation of ventral mesoderm and endoderm.
1998,
Pubmed
,
Xenbase Tada,
Xwnt11 is a target of Xenopus Brachyury: regulation of gastrulation movements via Dishevelled, but not through the canonical Wnt pathway.
2000,
Pubmed
,
Xenbase Taira,
The LIM domain-containing homeo box gene Xlim-1 is expressed specifically in the organizer region of Xenopus gastrula embryos.
1992,
Pubmed
,
Xenbase Taverner,
Microarray-based identification of VegT targets in Xenopus.
2005,
Pubmed
,
Xenbase Trindade,
DNA-binding specificity and embryological function of Xom (Xvent-2).
1999,
Pubmed
,
Xenbase von Bubnoff,
Phylogenetic footprinting and genome scanning identify vertebrate BMP response elements and new target genes.
2005,
Pubmed
,
Xenbase von Dassow,
Induction of the Xenopus organizer: expression and regulation of Xnot, a novel FGF and activin-regulated homeo box gene.
1993,
Pubmed
,
Xenbase Vonica,
Zygotic Wnt activity is required for Brachyury expression in the early Xenopus laevis embryo.
2002,
Pubmed
,
Xenbase Watabe,
Molecular mechanisms of Spemann's organizer formation: conserved growth factor synergy between Xenopus and mouse.
1995,
Pubmed
,
Xenbase Watanabe,
FAST-1 is a key maternal effector of mesoderm inducers in the early Xenopus embryo.
1999,
Pubmed
,
Xenbase White,
Direct and indirect regulation of derrière, a Xenopus mesoderm-inducing factor, by VegT.
2002,
Pubmed
,
Xenbase Yao,
Goosecoid promotes head organizer activity by direct repression of Xwnt8 in Spemann's organizer.
2001,
Pubmed
,
Xenbase Zhang,
Xenopus VegT RNA is localized to the vegetal cortex during oogenesis and encodes a novel T-box transcription factor involved in mesodermal patterning.
1996,
Pubmed
,
Xenbase Zhang,
The role of maternal VegT in establishing the primary germ layers in Xenopus embryos.
1998,
Pubmed
,
Xenbase
